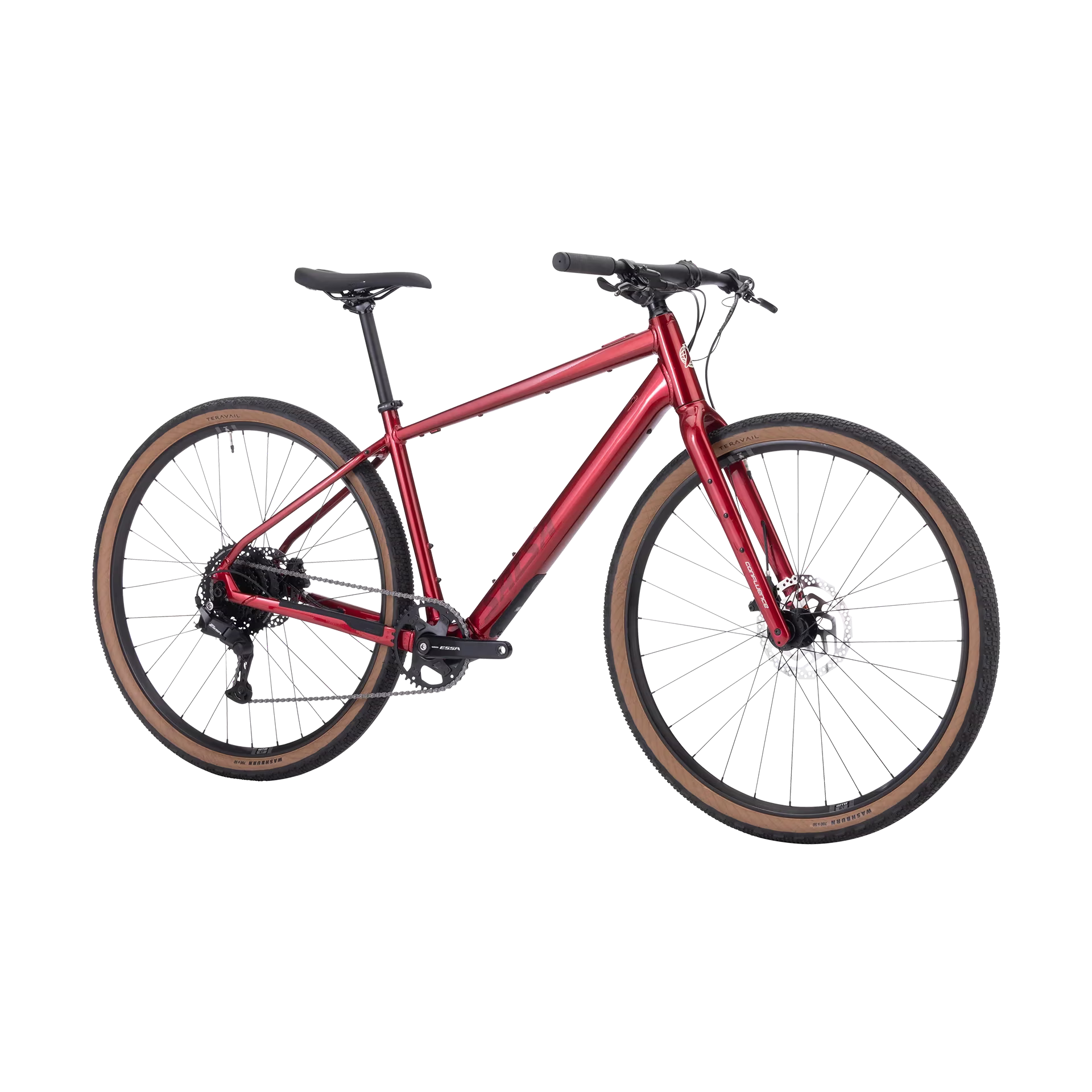

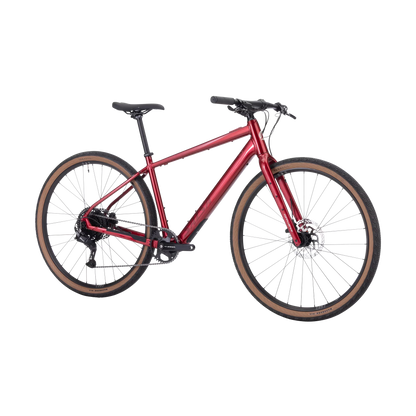

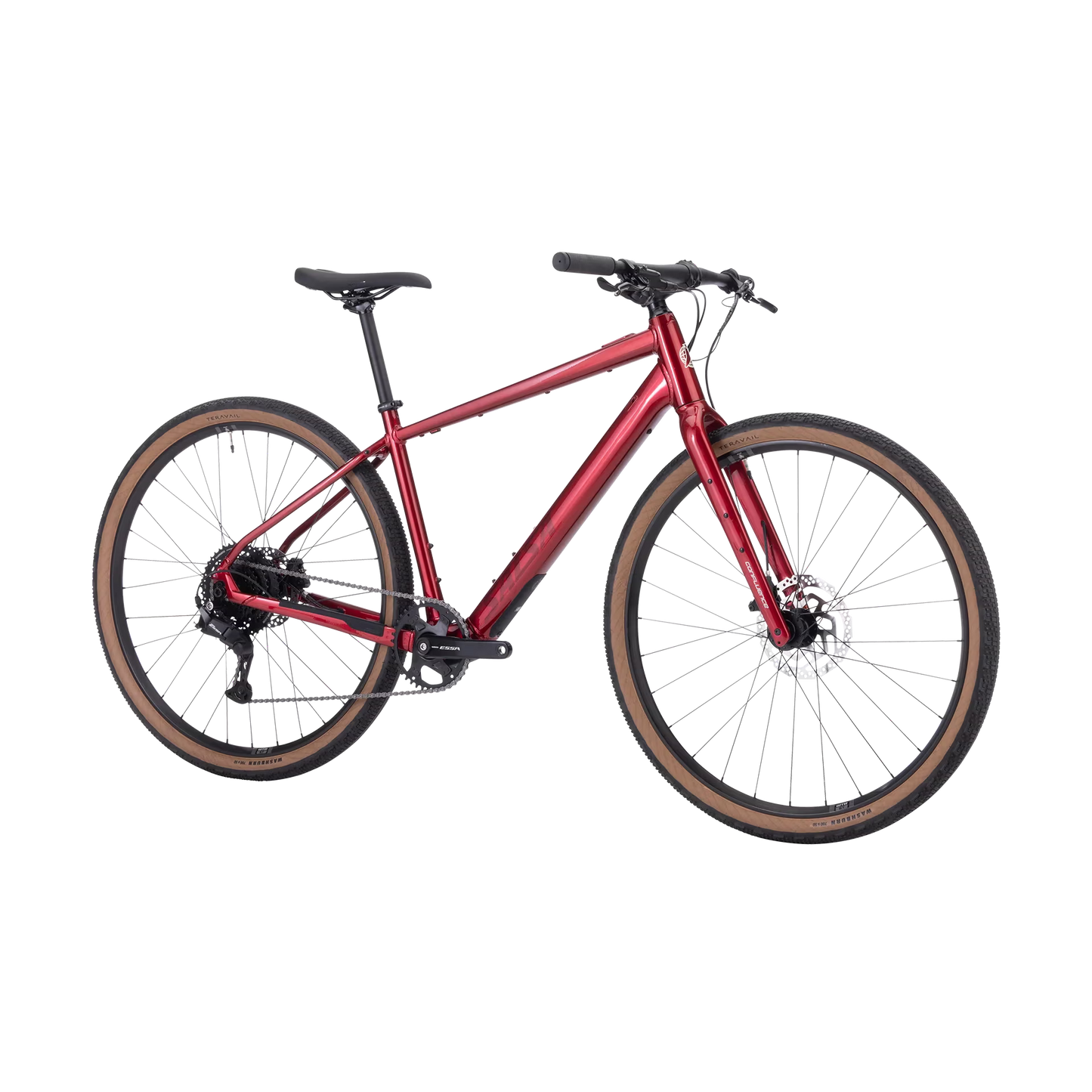

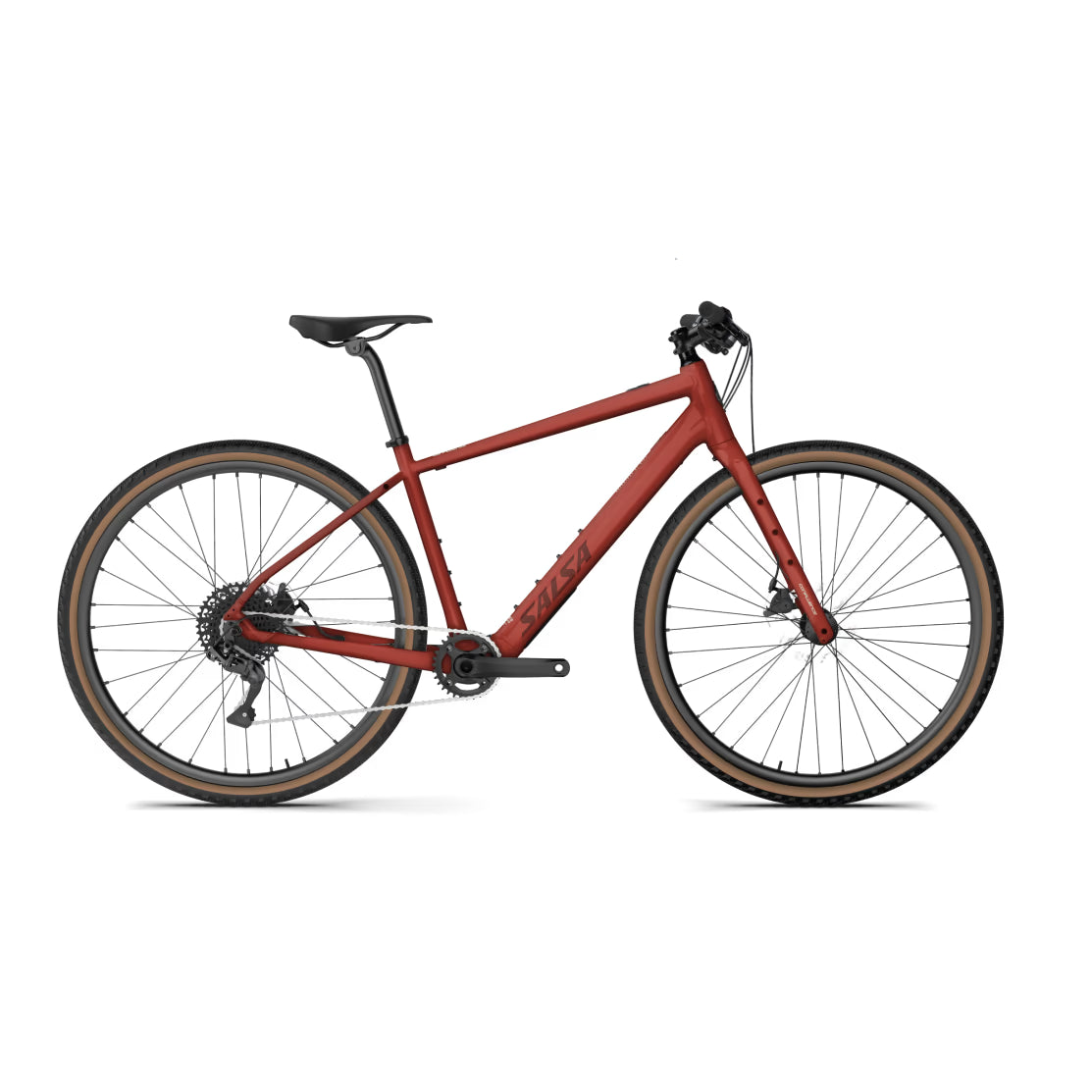

Accessible Flat-Bar Gravel E-Bike with Simple 8-Speed Drivetrain and Wide Cargo Capacity
The Confluence Flat Bar ESSA 8 puts electric assist within reach of riders who want an upright riding position and straightforward mechanical simplicity. A lightweight MAHLE X30 hub-drive motor with 45Nm of torque and a 237Wh battery provide enough range to explore familiar gravel routes and discover new ones, while a Shimano ESSA 1x8 drivetrain keeps shift logic simple and maintenance predictable. The flat bar and relaxed geometry make this an ideal entry point to e-bike gravel riding, especially for riders coming from casual bikes or commuters looking for off-road confidence without dropping to road bars.
Wide 700c x 50mm tire clearance and compatibility with 40mm suspension forks let you tackle rougher terrain, while on-bike mounts make it easy to add racks, cargo cages, or bikepacking bags. A 6061-T6 aluminum frame and carbon fork keep weight reasonable, and the discreet hub-drive system means this bike looks and feels like a traditional gravel bike rather than a bulky e-machine. Three assist levels and walk-assist mode give you flexibility across a range of riding speeds and terrain.
Simple, Confident Gravel Exploration

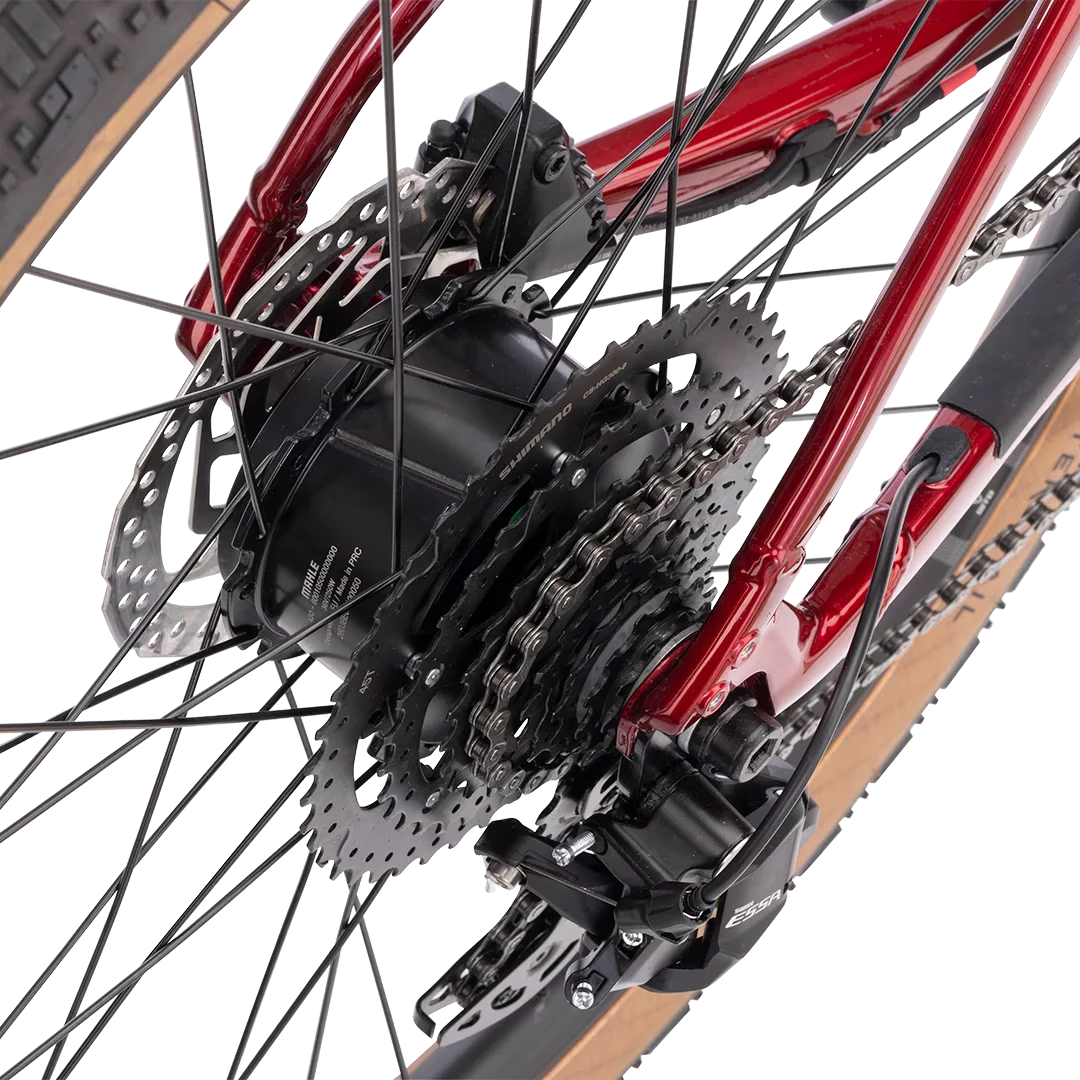

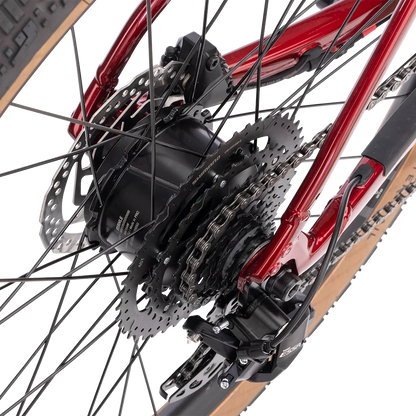

- MAHLE X30 Class 1 hub-drive motor with 45Nm max torque and three assist levels, providing electric assist up to 20 mph in a compact, lightweight package.

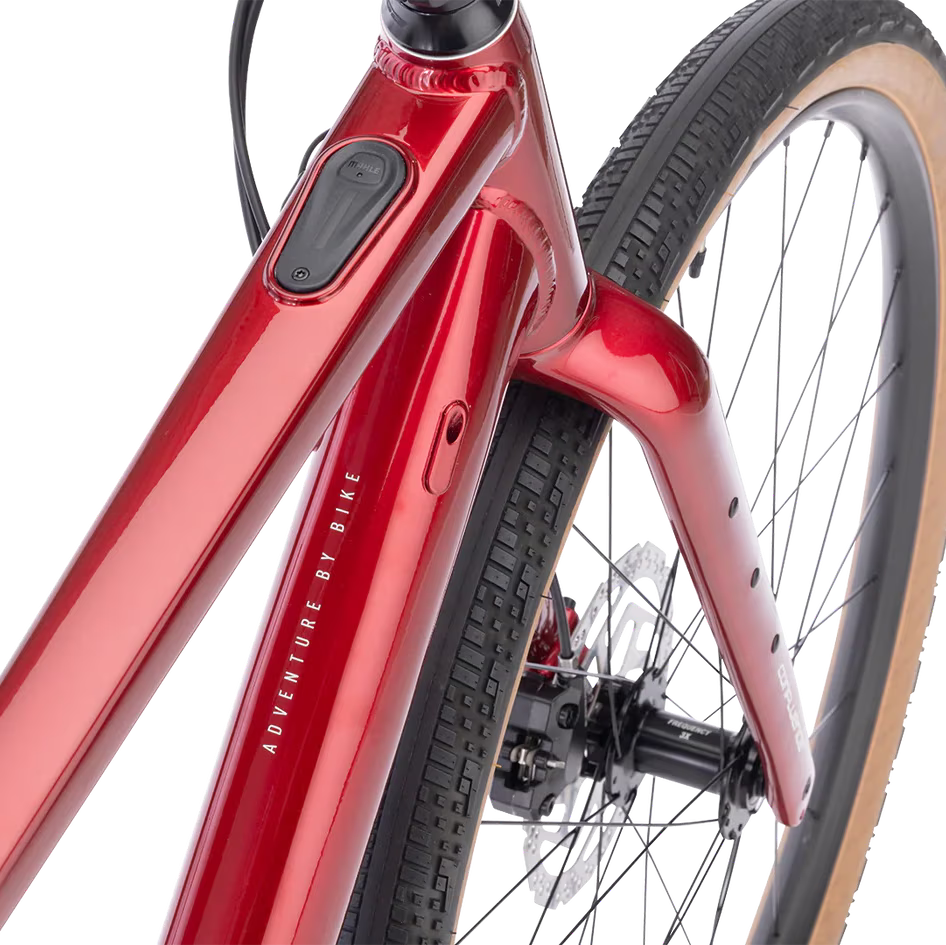

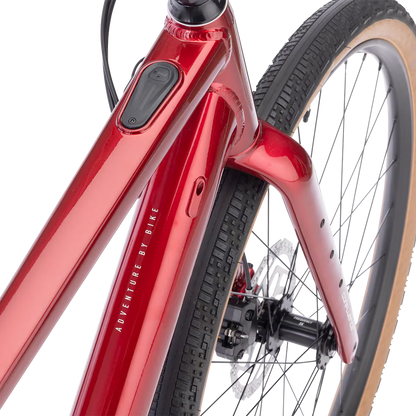

- 237Wh battery integrated into the downtube for structural stiffness and security, expandable to 421Wh with an optional MAHLE range extender battery.
- Up to 45 miles of range per charge under ideal conditions, with walk-assist mode for steep climbs or pedestrian sections.

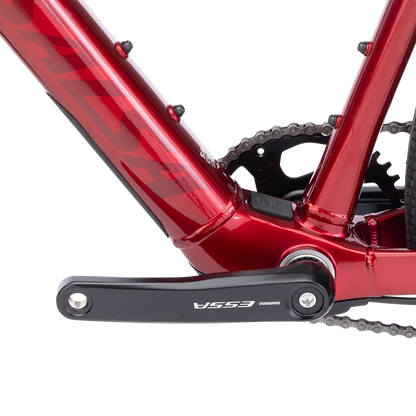

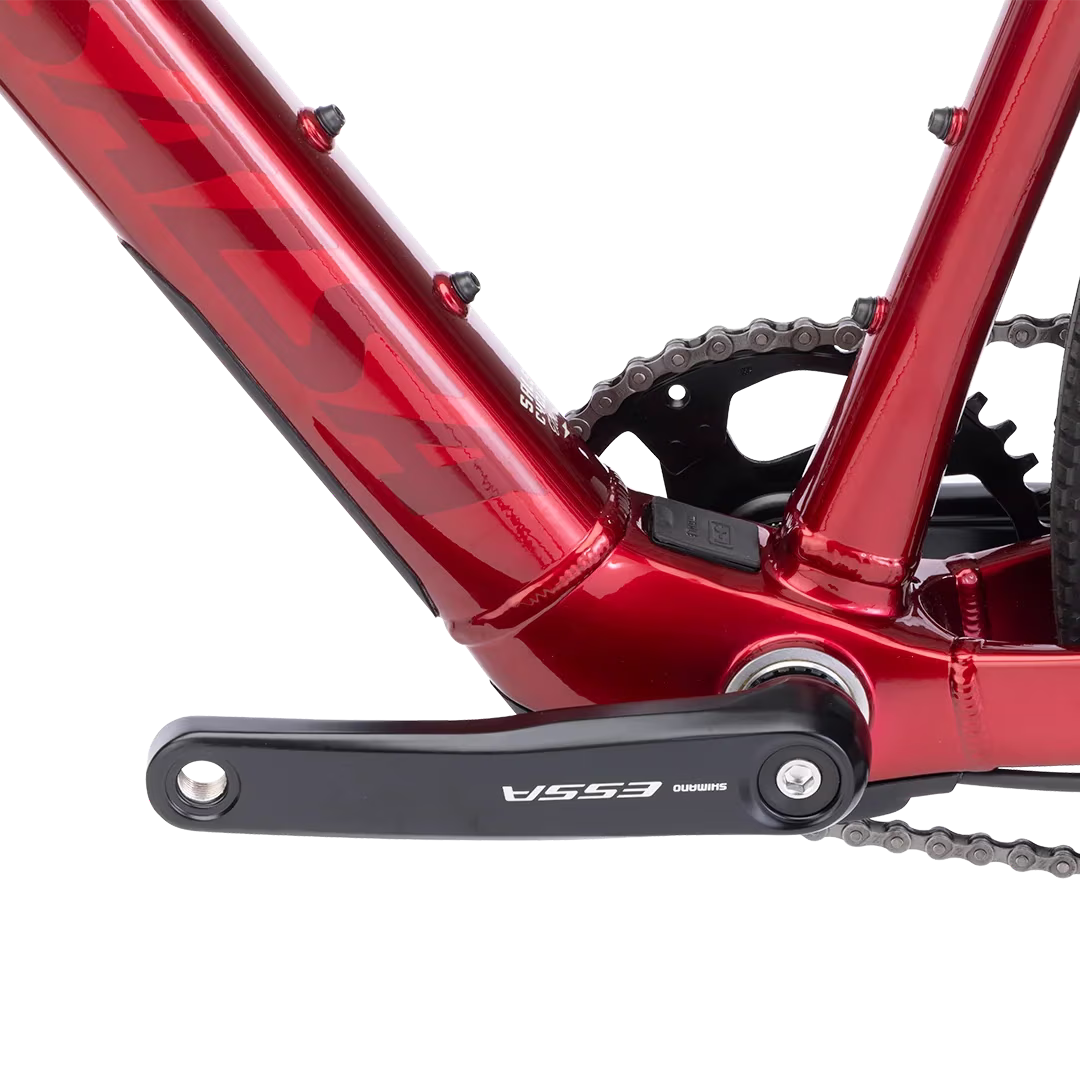

- Shimano ESSA 1x8 drivetrain with a single 40t chainring and 11-45t cassette for straightforward shifting and dependable performance in all conditions.
- Shimano MT200/MT201 hydraulic disc brakes with 180mm front and 160mm rear rotors for confident stopping power.
- Flat handlebar with upright geometry designed for comfort, control, and accessibility, particularly for riders new to e-biking.

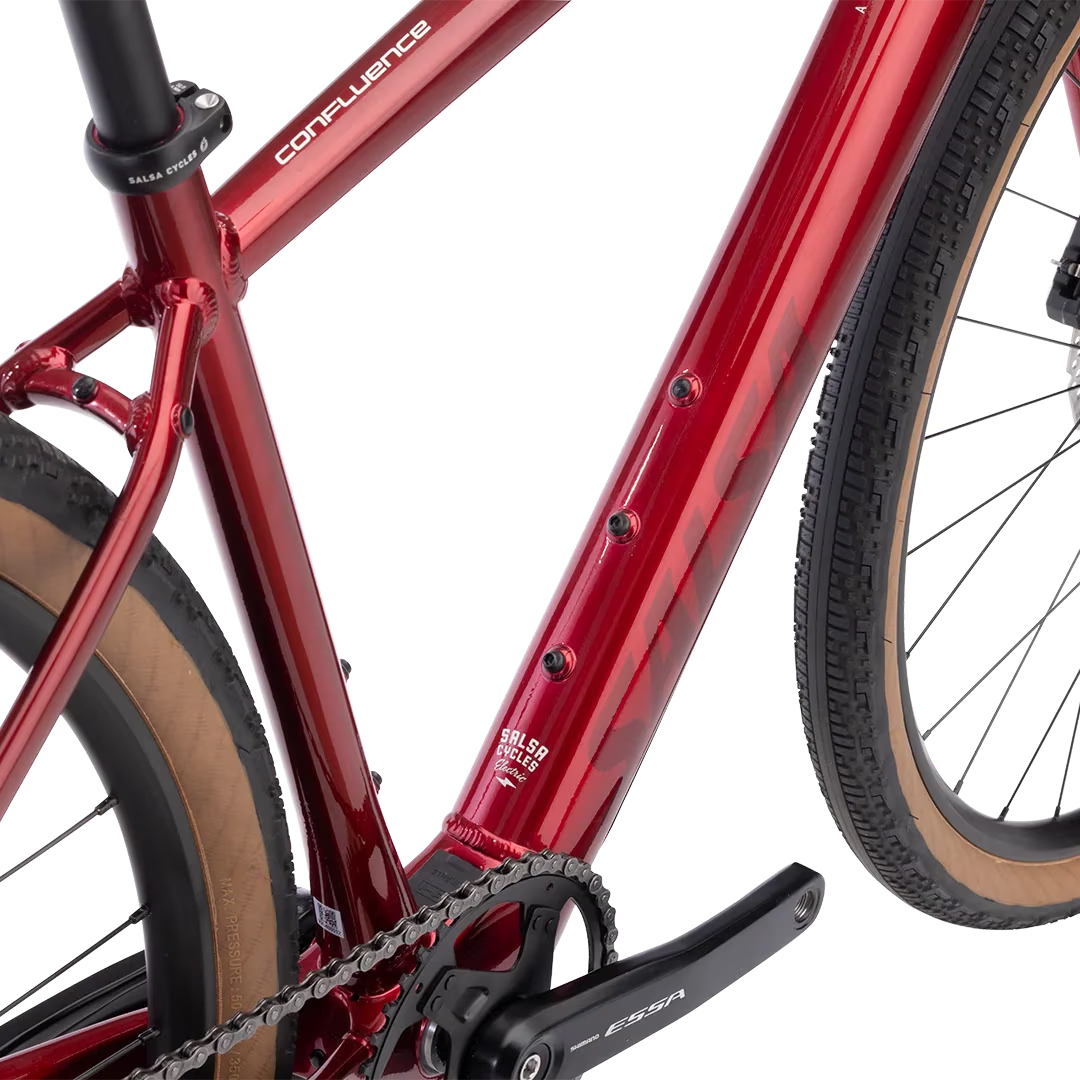

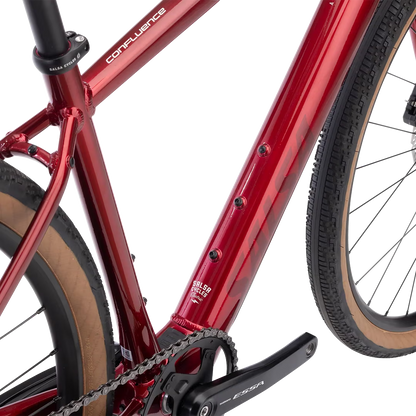

- 6061-T6 aluminum frame and carbon fiber fork balance responsiveness with strength and compliance.
- Inclusive sizing with five frame sizes (XS to XL) to accommodate a wide range of rider heights and proportions.
- 700c x 50mm tire clearance for tackling lesser-traveled tracks, or 700c x 42mm with fenders for everyday versatility.
- On-bike cargo mounting including front and rear rack mounts, three-pack bottle mounts, and frame bag compatibility for flexible gear carrying.
- Suspension fork and dropper post compatible for riders who want to expand capability on rougher terrain.
- HMI compact top tube controller and MAHLE Duo handlebar-mounted remote for assist adjustments without hands leaving the bar.
- ANT+ and Bluetooth connectivity with MAHLE MySmartBike app integration for metrics, customization, and route planning.
- UL 2849 and UL 2271 certified battery for safety and peace of mind.
Details
Side Effects
Bike Facts
Serving size Carries up to 1 person
| Amount per ride | |
|---|---|
| Joy | 100% |
| Bike Details | |
| Frame Material | Aluminium |
| Brakes | Hydraulic Disc |
| Tires | 700 x 50 |
| Number of Gears | 11 |
| Rider Height | 4'8" - 6'4" |
| Weight | Approx 31 lbs |
| Ebike Class | Class 1 |
| Motor Power | 45Nm |
| Battery / Range | 45 mi |
| Suspension | Rigid |
| Max Load (lbs) | 275 |
| Maintenance Requirements | Standard |
Specifications
Shipping Policy
Waranty
UPC / Part Numbers
| Option | SKU | UPC |
|---|---|---|
| Canyon Red / XS | BK01608 | 657993486573 |
| Canyon Red / S | BK01609 | 657993486597 |
| Canyon Red / M | BK01610 | 657993486610 |
| Canyon Red / L | BK01611 | 657993486634 |
| Canyon Red / XL | BK01612 | 657993486658 |
