Description
Connect Your Bosch PowerMore 250 to the Smart System
This Bosch PowerMore cable is the dedicated link between a Bosch PowerMore 250 range extender battery and a Bosch Smart System–equipped e-bike. It plugs into the charging socket on your frame and into the PowerMore 250, letting your motor draw from both the main and extension batteries to increase your usable range.
Because frame layouts and charge port locations vary widely, the PowerMore cable is sold separately from the battery and offered in multiple lengths and connector orientations. That way, you can match the cable to your specific frame design, whether the charging socket is on the downtube, seat tube, or elsewhere. If your bike is a Bosch Smart System model that we sell (such as Gazelle, Cube, or Tern), we can help you choose the correct cable. For a rider’s-eye overview of the system in use, check out the Bosch PowerMore review on bikeshopgirl.com.
Engineered Simplicity
- Cable-only solution for connecting the Bosch PowerMore 250 range extender battery to Bosch Smart System e-bikes.
- Plugs into the bike’s charging socket and the PowerMore 250 battery so you can tap into extra range on longer rides.
- Available in multiple lengths to match different frame geometries and mounting positions.
- Two connector orientations:
- Cable routing in the direction of the frame (runs close alongside the tubes).

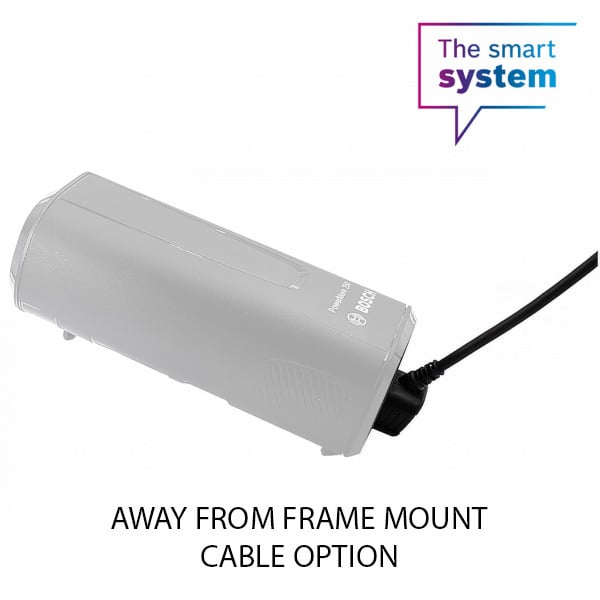

- Cable routing facing away from the frame (for ports that need a different exit angle).
- Cable is not included with the PowerMore 250 battery and must be ordered separately.
- We can assist with cable selection for Bosch Smart System bikes we sell, including Gazelle, Cube, and Tern models.
Important Compatibility Disclaimer
- This cable is designed for use with a wide range of Bosch Smart System bikes, but frame designs and component specs vary, so a perfect fit cannot be guaranteed for every model.
- Compatibility with Bosch PowerMore 250 batteries may vary depending on your specific battery version, cable type, and e-bike configuration.
- Carefully confirm required cable length and connector orientation against your bike’s frame layout and charge port position before ordering.
- If you are unsure about bike compatibility, contact your bike manufacturer. For Bosch PowerMore–specific questions, contact Bosch directly.
- We are not liable for damage or issues arising from use with incompatible bikes, batteries, or cables.
Details
UPC / Part Numbers
| Option | SKU | UPC |
|---|---|---|
| Towards Frame Mount / 100mm | EB12.120.035 | 4054289010409 |
| Towards Frame Mount / 150mm | EB12.120.036 | 4054289010416 |
| Towards Frame Mount / 300mm | EB12.120.07C | 4054289010423 |
| Towards Frame Mount / 50mm | EB12.120.04K | 4054289010393 |
| Towards Frame Mount / 550mm | EB12.120.045 | 4054289010430 |
| Towards Frame Mount / 750mm | EB12.120.038 | 4054289010447 |
| Away from Frame Mount / 150mm | EB12.120.07D | 4054289010478 |
| Away from Frame Mount / 50mm | EB12.120.04L | 4054289010454 |
| Away from Frame Mount / 100mm | EB12.120.04D | 4054289010461 |
