Description

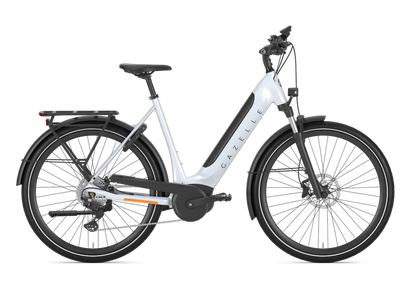

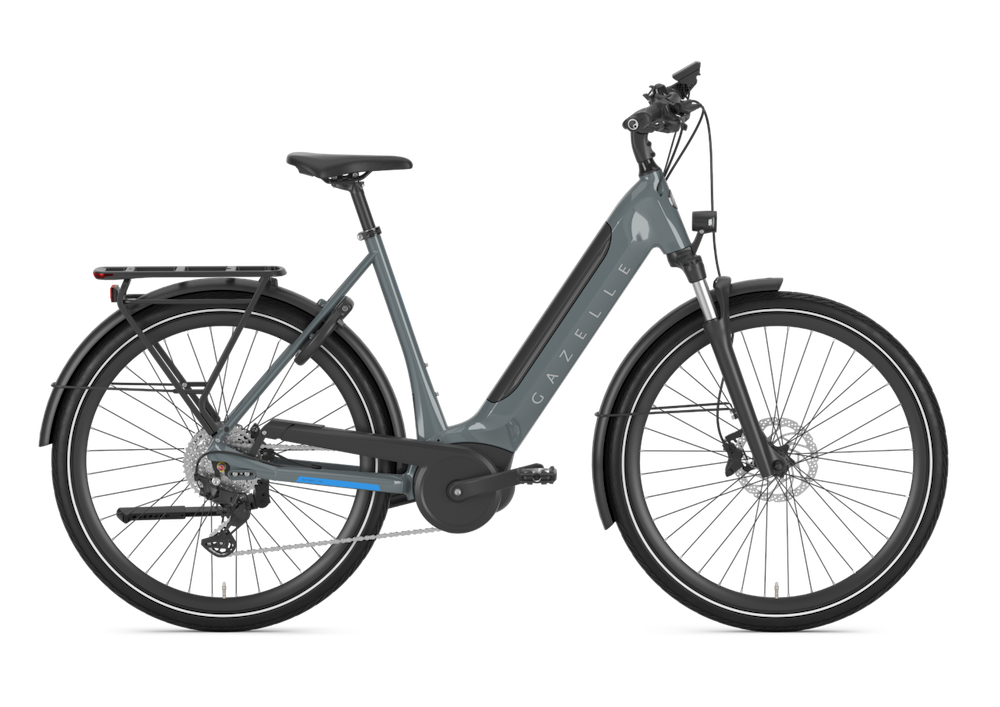

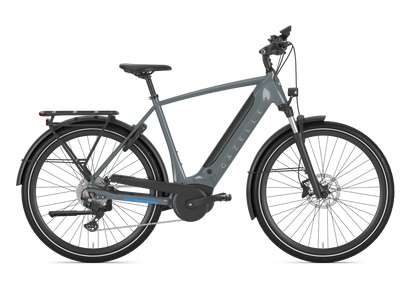

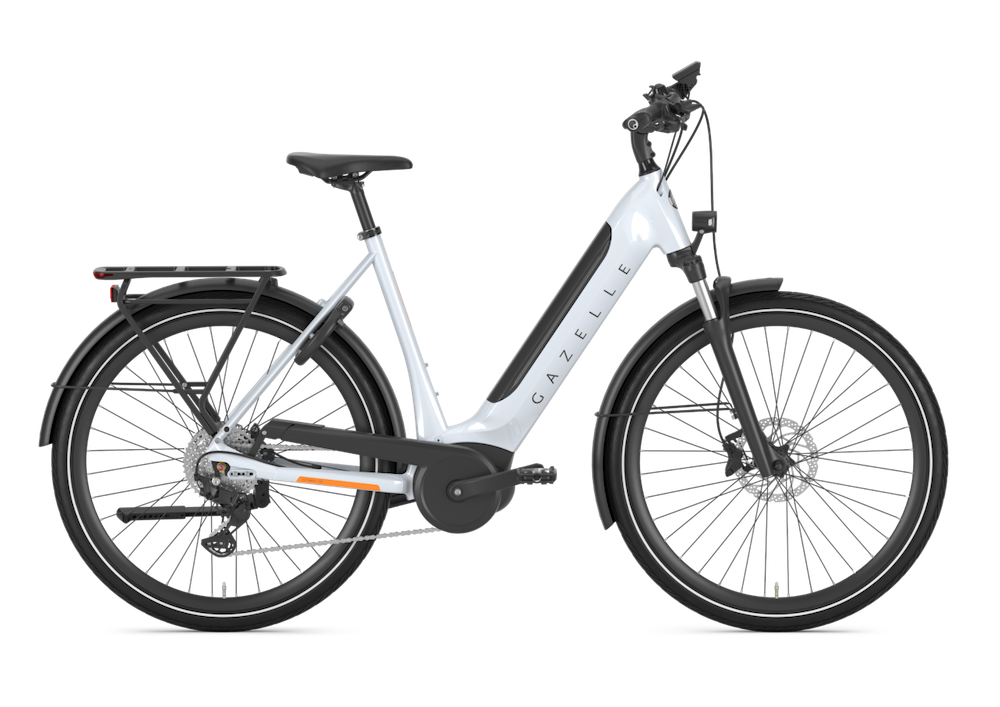

Bosch Smart System Meets Daily-Speed Utility
The Ultimate T10 Smart System sits between Gazelle’s low-maintenance hub models and their high-speed belt-drive platforms. It uses a 10-speed Shimano Deore derailleur setup, giving a wide gear range, while still delivering upright Dutch stability and integrated commuter hardware.
The Bosch Performance Line motor (Smart System) gives controlled assist up to 20 mph. This is the Gazelle for riders who want more engagement than an automatic hub, more range flexibility, and modern ebike tech, but still expect Dutch reliability and all-weather durability — fenders, rack, lights, wiring, and stance all built in, not added on.
At a Glance
- Bosch Performance Line (Smart System) — 20 mph assist with app connectivity, navigation, and security lock features.
- Shimano Deore 10-Speed Derailleur — Wider mechanical gear range for active riding and hill control.

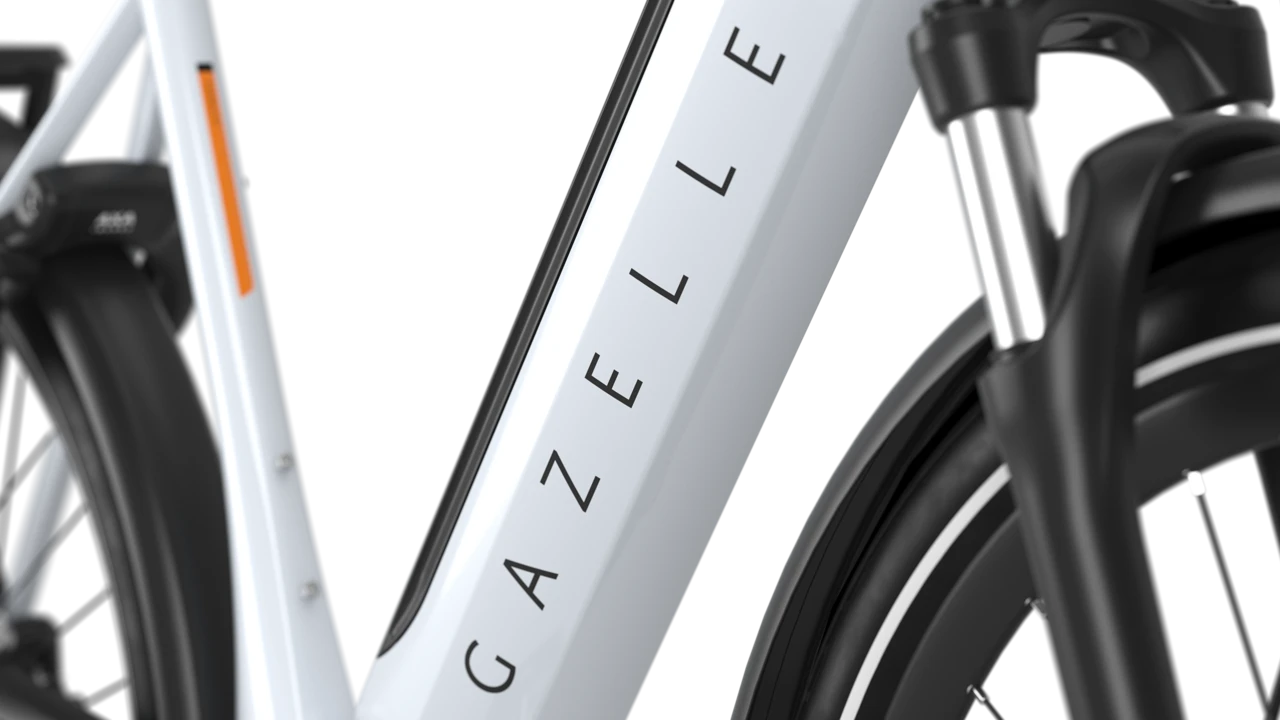

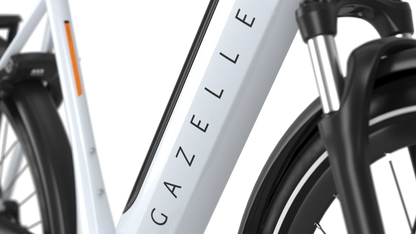

- Bosch 625 Wh Battery (Frame Integrated) — Long-range capacity with clean frame integration.
- Hydraulic Disc Brakes — Ebike-rated stopping power for urban speed and load.

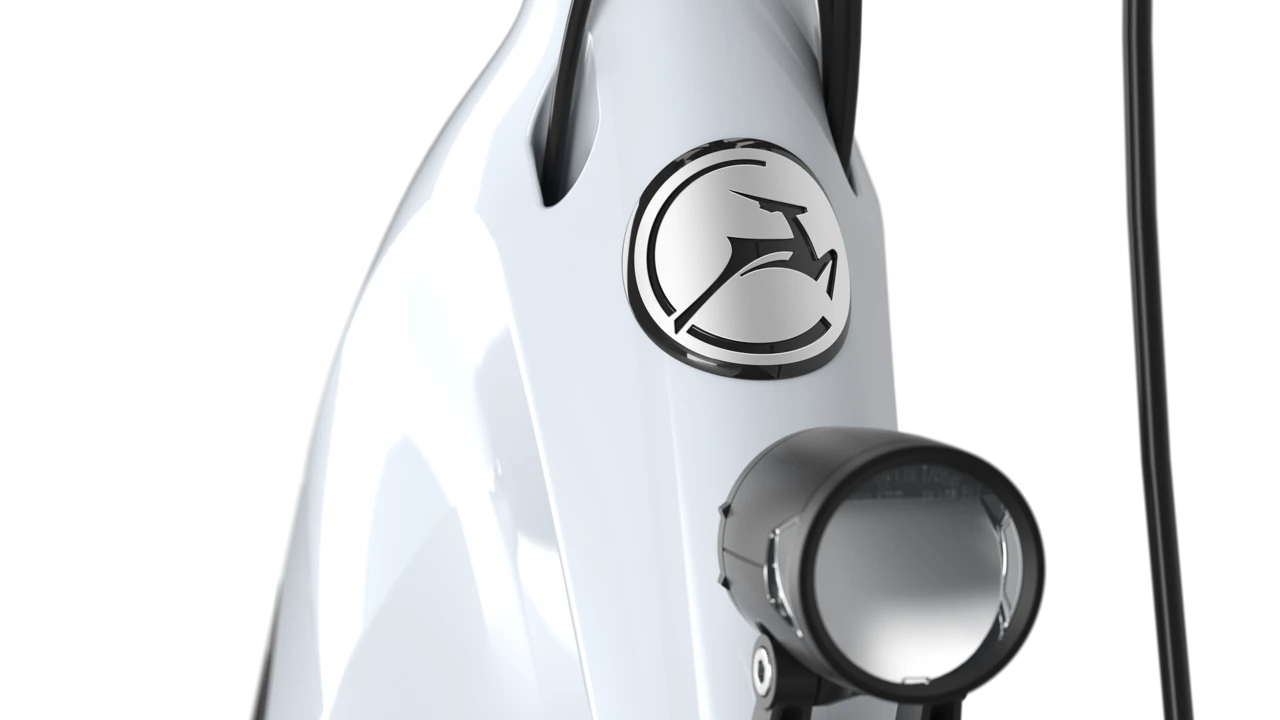

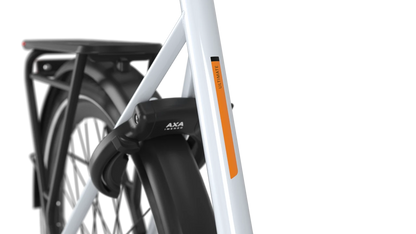

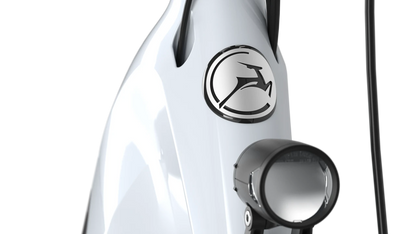

- Integrated Rack, Lights, and Fenders — Ready for commuting and errands from day one.
- Upright Dutch Geometry — Maintains visibility and stability without leaning or stretching forward.
- Bosch Flow App Support — Allows firmware updates, ride data, and anti-theft locking from your phone.
Side Effects
Bike Facts
Serving size Carries up to 1 person
| Amount per ride | |
|---|---|
| Joy | 100% |
| Bike Details | |
| Frame Material | Aluminum |
| Brakes | Shimano hydraulic disc |
| Tires | Schwalbe Energizer Plus 50-622 |
| Number of Gears | 10 |
| Rider Height | 46 cm: 4'10" – 5'6" 53 cm: 5'6" – 5'10" 57 cm: 5'10" – 6'4" |
| Weight | Approx. 53 Lbs |
| Ebike Class | 1 |
| Motor Power | Bosch Smart System Performance Line, 75 Nm torque |
| Battery / Range | Bosch 625 Wh, 40 – 100 miles |
| Suspension | Suntour NVX30 |
| Max Load (lbs) | 300 |

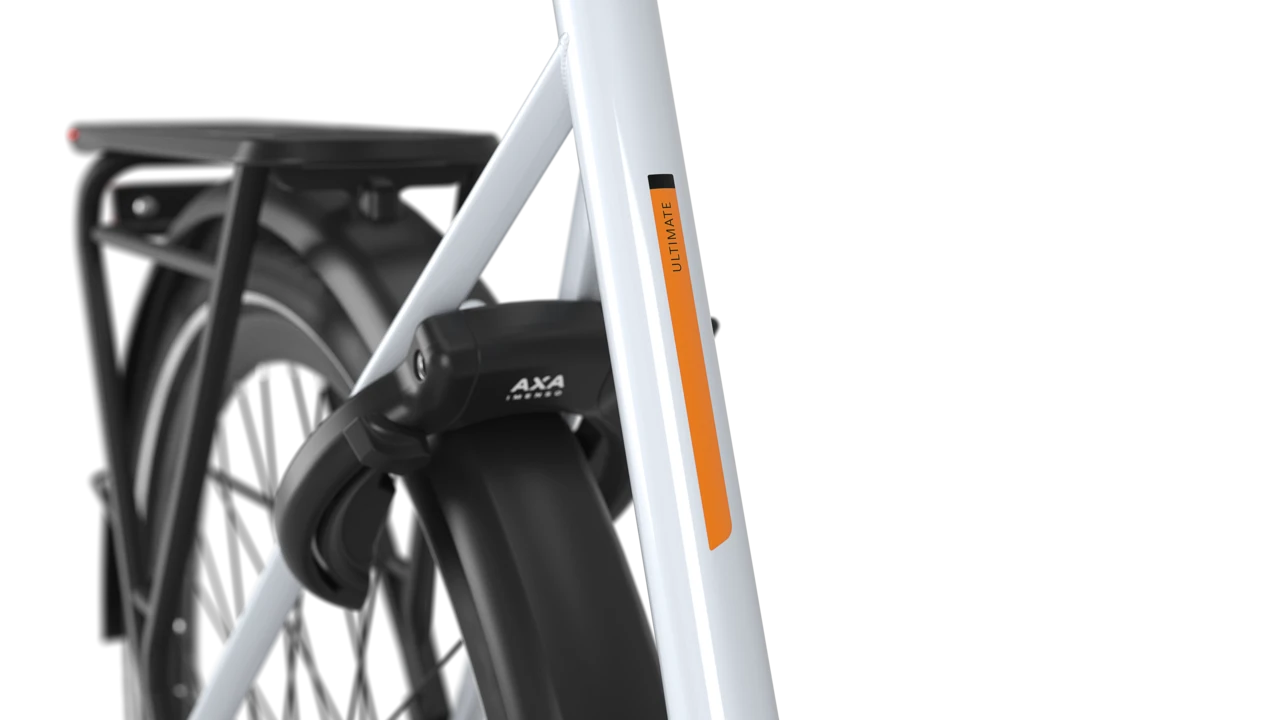

| Included Accessories | Bell, front & rear lights, fenders, rack, cafe lock |
| Maintenance Requirements | Medium |
Size Information
Bike Sizing, Simplified
Gazelle bikes don't come in a dozen frame sizes like racing bikes — and that's on purpose. Their upright, comfortable design and step-through frames let each size fit a wide range of riders. When you raise or lower the saddle, your leg reach and distance to the bars adjust naturally, so one frame can fit people who are several inches apart in height.
The right size depends mostly on your height and preferred riding posture. Use the chart below to find yours.
| Rider Height | Frame Size | Frame Label |
|---|---|---|
| 4′9″ – 5′2″ | 40 | XS |
| 4′10″ – 5′6″ | 45–46 | S |
| 5′6″ – 5′10″ | 50–53 | M |
| 5′10″ – 6′3″ | 55–57 | L |
If you're between sizes, choose smaller for closer handlebars and larger for a bit more reach.
Fine-tune at pickup
We'll set saddle height and handlebar angle for you in minutes. Expect about 4 inches of seatpost range for multi-rider households.
Step-through vs. step-over
Step-through: easiest to get on and off. Step-over: slightly sportier feel.
Want absolute confidence? Test ride at Clever Cycles. We'll confirm size and make small adjustments on the spot.
Shipping Policy
Warranty
UPC / Part Numbers
| Option | SKU | UPC |
|---|---|---|
| Frozen White / 46 - Low Step | G3623 | 8717231362280 |
| Frozen White / 53 - Low Step | G3625 | 8717231362297 |
| Frozen White / 57 - Low Step | G3626 | 8717231362303 |

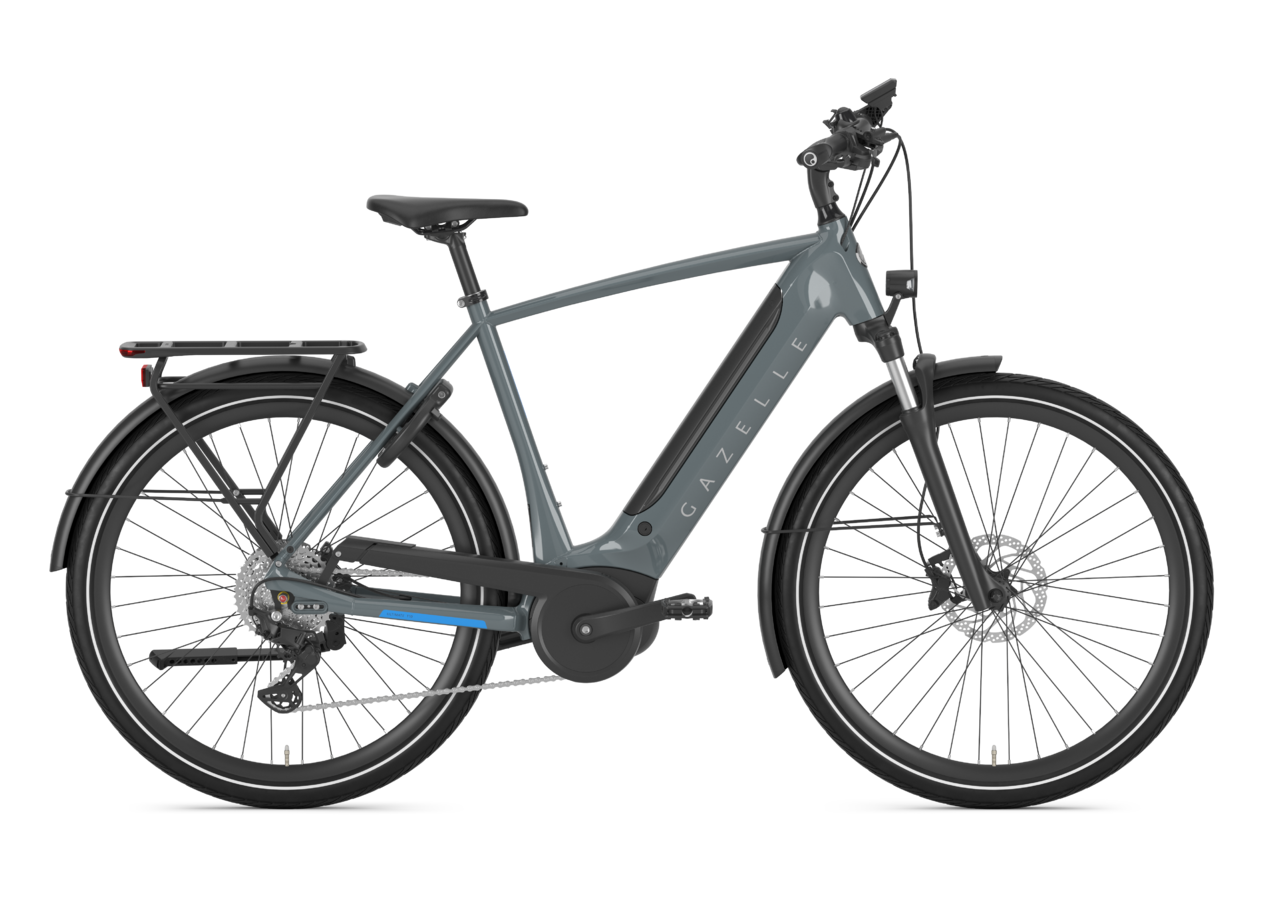

| Thunder Grey / 53 - High Step | G3633 | 8717231362341 |
| Thunder Grey / 57 - High Step | G3634 | 8717231362358 |

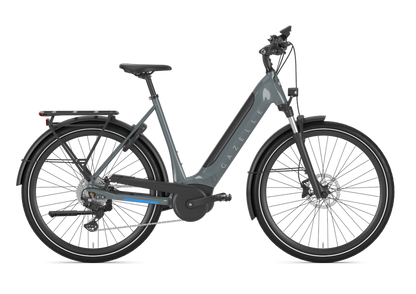

| Thunder Grey / 57 - Low Step | G3631 | 8717231362334 |
| Thunder Grey / 53 - Low Step | G3630 | 8717231362327 |
| Thunder Grey / 46 - Low Step | G3628 | 8717231362310 |
