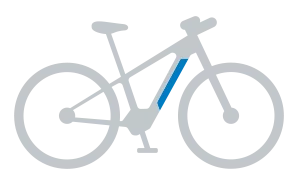

Bosch ebike batteries are integrated into the bike frame to protect them from the elements and give the bike a clean, streamlined look. Both horizontal and vertical batteries have the same performance and properties, but they are not interchangeable, so it's important to choose the battery that matches your bike's battery plug orientation. You can check the label on the side of your battery to determine if it's horizontal or vertical.

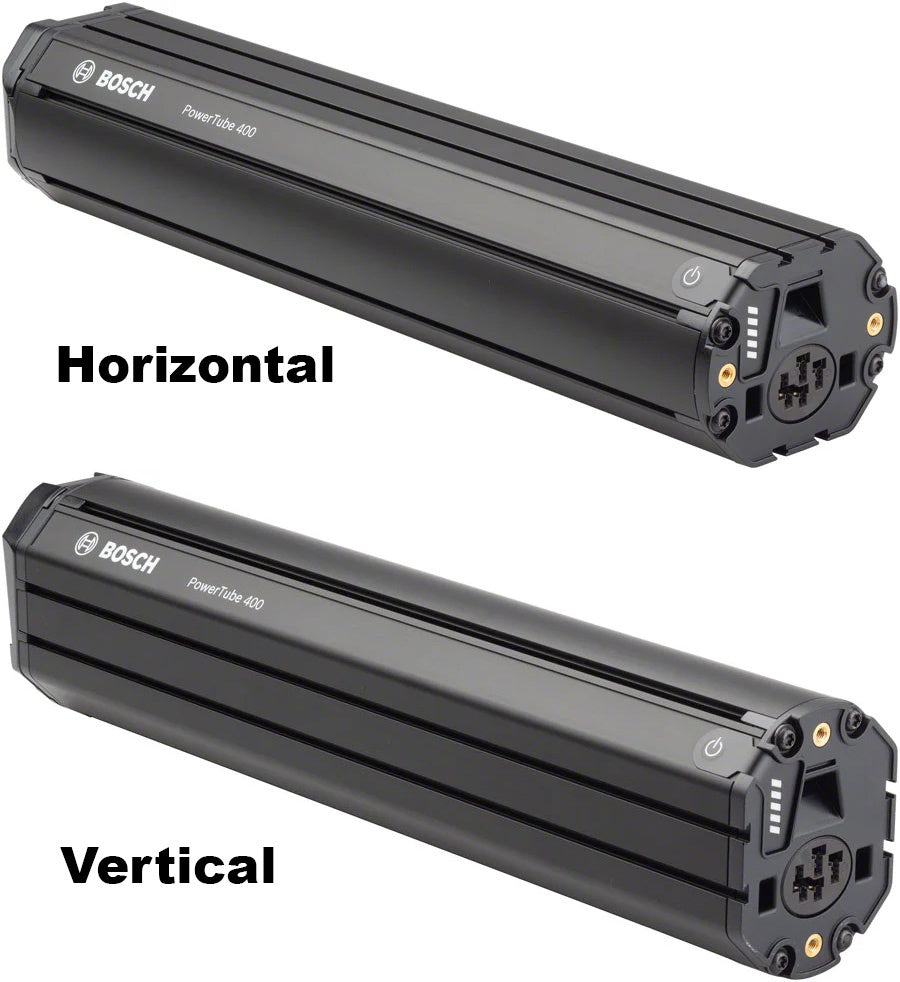

Bosch Battery Housing Shape (Vertical or Horizontal)
Horizontal batteries have larger top and bottom edge lengths than the sides, while vertical batteries have smaller top and bottom edge lengths than the sides.

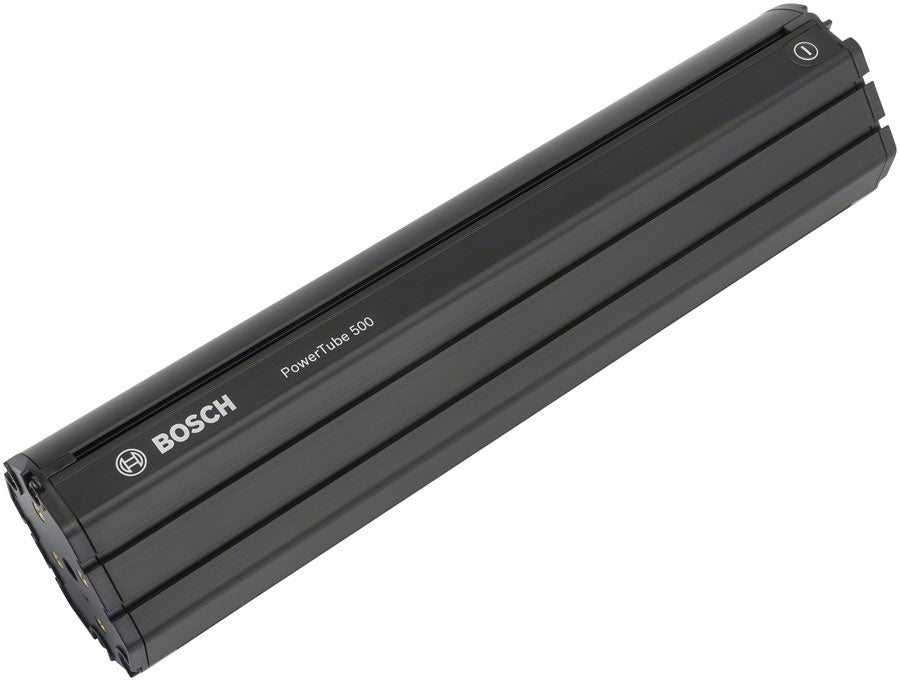

| PowerTube 500 Vertical Mount Integrated | |
| System | Bosch System 2 |
| Mounting type | Integrated Frame - Vertical |
| Voltage | 36 V |
| Capacity | 13.4 Ah |
| Energy Content | Approx. 500 Wh |
| Weight | 6.4 lbs. |
| Size | 13.7 x 2.6 x 3.3 inches |
| Compatible with DualBattery Bosch eBike system 2 | Yes |
| 4A Charger Charging Time | 50% charge: approx. 1.7 hours 100% charge: approx. 4.5 hours |
| 2A Charger Charging Time | 50% charge: approx. 3.5 hours 100% charge: approx. 7.5 hours |
