Description
Classic Dutch Style, Modern Power, Zero Compromises

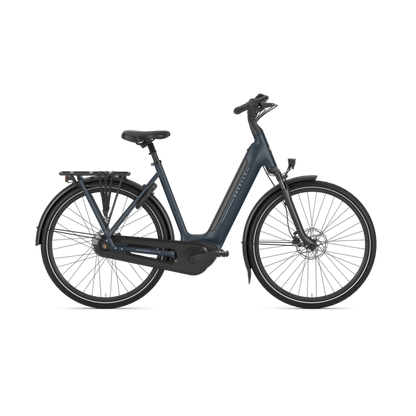

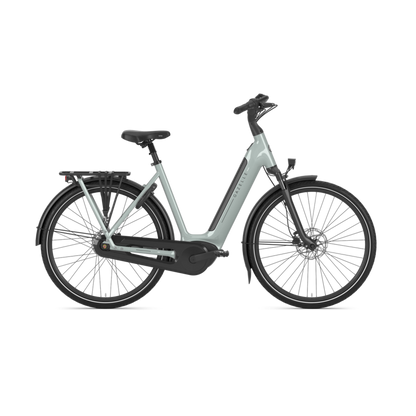

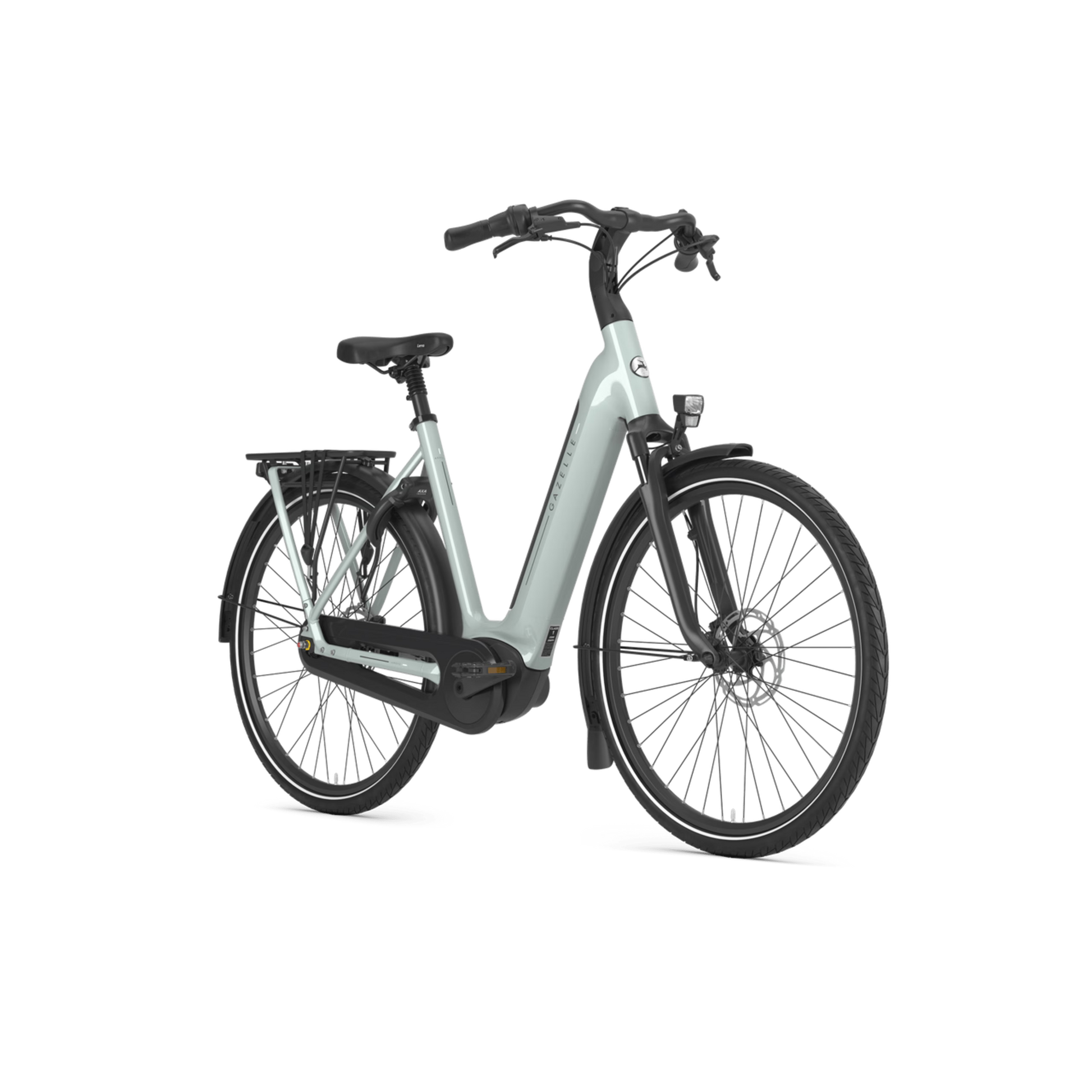

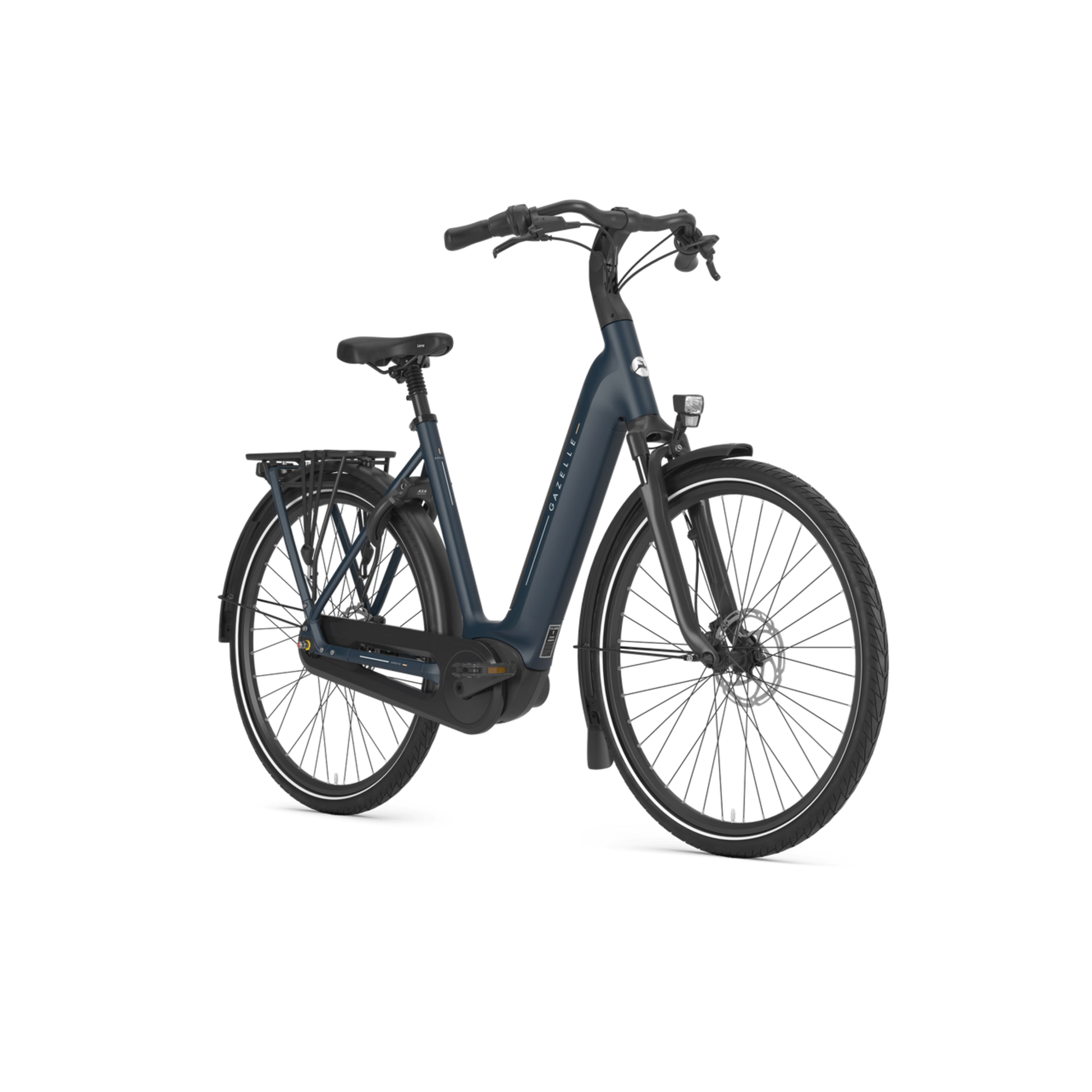

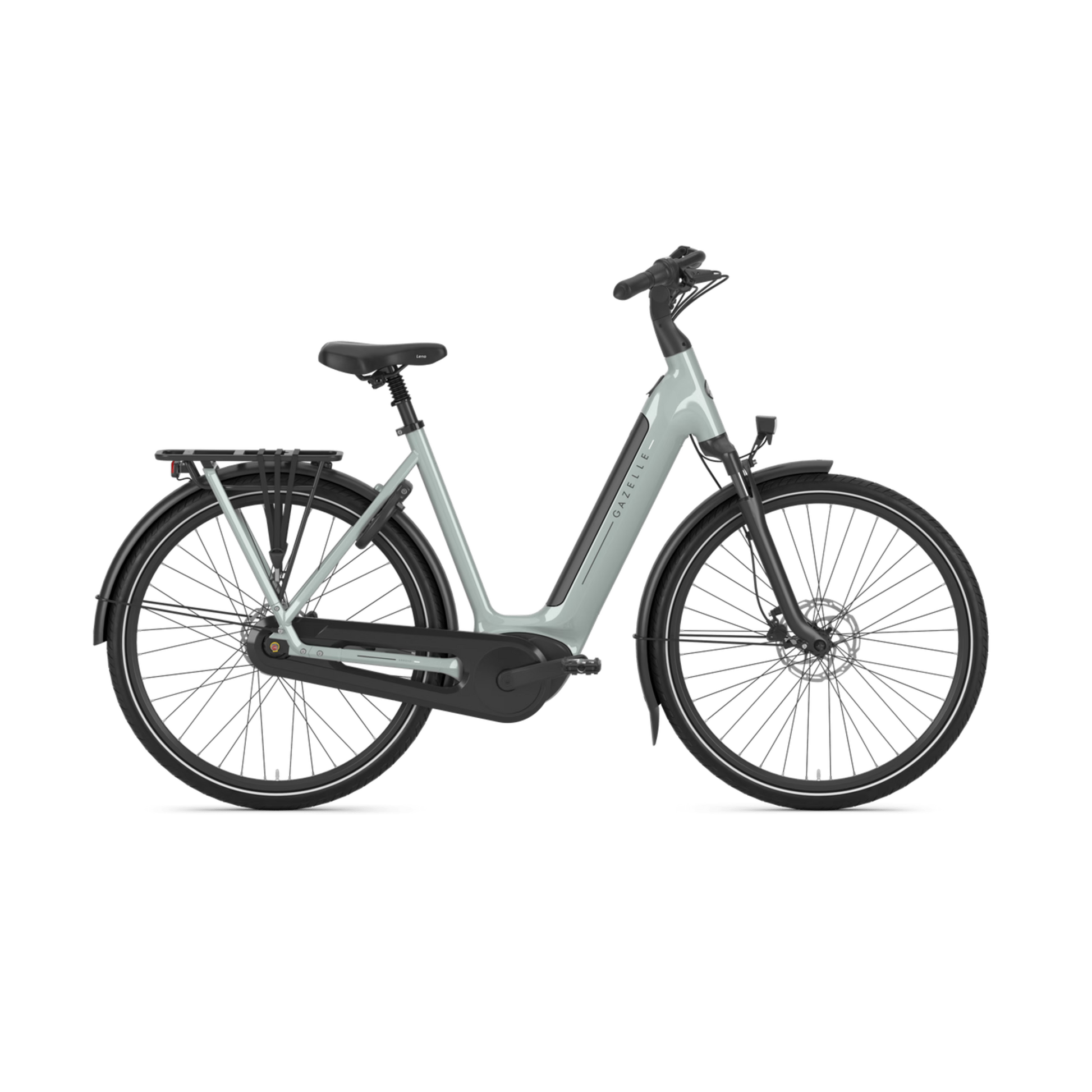

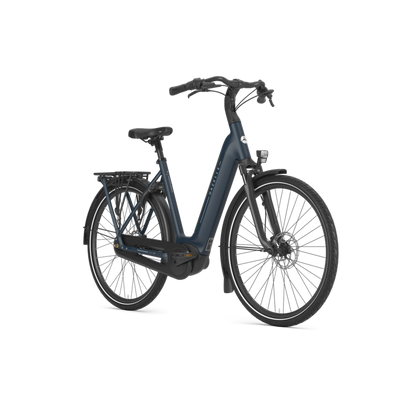

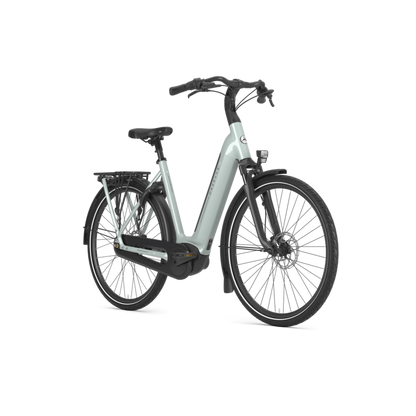

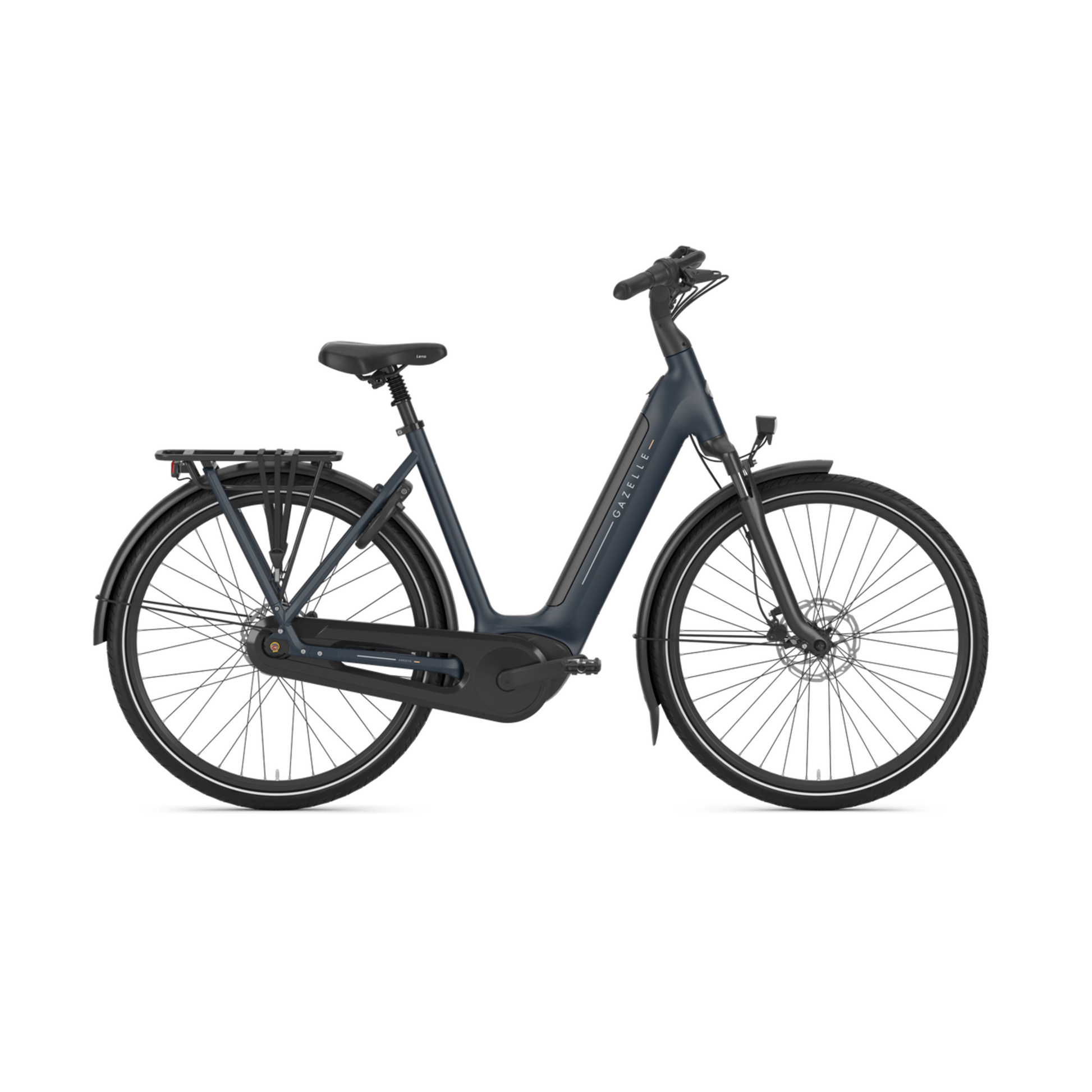

The Gazelle Arroyo C8 Elite is built for riders who want a genuinely comfortable daily bike without giving up the clean, timeless look that Dutch cycling culture is known for. A low-step hydroformed aluminum frame with a wide, open entry makes mounting and dismounting second nature, while a 68.5° headset angle and upright riding position keep you relaxed whether you're commuting, running errands, or just riding for pleasure. The 540Wh Bosch Smart System battery integrates fully into the frame — no external pack, no visual clutter — and the cables are routed internally throughout, preserving the Arroyo's refined silhouette from every angle.
The Bosch Active Line Plus mid-motor delivers 50 Nm of torque with smooth, natural-feeling assist across four support levels — Eco, Tour, Auto, and Turbo — and a Bosch Purion 200 color LCD keeps everything at a glance. A telescoping suspension fork with 40mm of travel and a suspension seatpost absorb urban road chop so the ride stays comfortable even on rough pavement. Tektro hydraulic disc brakes front and rear provide reliable, progressive stopping power in all weather, and a Shimano Nexus 8-speed internal hub handles shifting cleanly without the need for a rear derailleur.
Comfort You Can Ride Every Day
- Low-step hydroformed aluminum frame with integrated battery and internal cable routing for a clean, uncluttered appearance.
- Bosch Active Line Plus mid-motor with 50 Nm of torque and 4 support modes: Eco, Tour, Auto, and Turbo.
- 540Wh Bosch Smart System battery fully integrated into the frame; charged with included Bosch Compact Charger.
- Bosch Purion 200 color LCD display with Walk Assist; max assist speed 20 mph (Class 1).
- Shimano Nexus 8-speed internal gear hub — low maintenance, reliable shifting in all conditions.
- Tektro HD-T280 hydraulic disc brakes: 180mm rotor front, 160mm rear for confident, all-weather stopping.
- Telescoping aluminum suspension fork with 40mm travel absorbs road vibration; suspension seatpost adds additional compliance.
- Schwalbe Energizer Active Plus tires (50-622) on Ryde ZAC 421 rims for a smooth, puncture-resistant ride.
- Adjustable stem and comfort-curved aluminum handlebar with Gazelle Aerowing grips for a personalized fit.
- Selle Royal Lena saddle for long-ride comfort.
- Aluminum MIK HD rear carrier supports accessories and bags using the MIK mounting system.
- AXA NXT 60 front light and Spanninga Solo rear light; AXA two-star rated lock included.
- Chain case and Ursus drop-down rear kickstand included.
Side Effects
Bike Facts
Serving size Carries up to 1 person
| Amount per ride | |
|---|---|
| Joy | 100% |
| Bike Details | |
| Frame Material | Hydroformed aluminum |
| Brakes | Tektro HD-T280 hydraulic disc, 180mm front / 160mm rear |
| Tires | Schwalbe Energizer Active Plus, 28" x 2.0" (50-622) |
| Number of Gears | 8 |
| Rider Height | S (46cm): 4'11"–5'4" M (53cm): 5'4"–5'9" L (57cm): 5'9"–6'2" |
| Weight | 60.2 lbs (excl. battery) |
| Ebike Class | Class 1 (20 mph) |
| Motor Power | Bosch Active Line Plus, 50 Nm mid-drive |
| Battery / Range | 540Wh Bosch Smart System, frame-integrated; up to 95 mi (Eco) / 60 mi (Tour) / 45 mi (Auto) / 40 mi (Turbo) |
| Suspension | Telescoping front fork, 40mm travel; suspension seatpost |
| Max Load (lbs) | 285 |
| Included Accessories | AXA NXT 60 front light, Spanninga Solo rear light, AXA two-star rated lock, Aluminum MIK HD rear carrier, Chain case, Ursus drop-down rear kickstand, Bosch Compact Charger, |
| Maintenance Requirements | Low |
* Warning: Riding this bike may make you insufferably cheerful. Side effects include: skipped car trips, unsolicited route recommendations, and arriving everywhere in a better mood than anyone else.
Size Information
Bike Sizing, Simplified
Gazelle bikes don't come in a dozen frame sizes like racing bikes — and that's on purpose. Their upright, comfortable design and step-through frames let each size fit a wide range of riders. When you raise or lower the saddle, your leg reach and distance to the bars adjust naturally, so one frame can fit people who are several inches apart in height.
The right size depends mostly on your height and preferred riding posture. Use the chart below to find yours.
| Rider Height | Frame Size | Frame Label |
|---|---|---|
| 4′9″ – 5′2″ | 40 | XS |
| 4′10″ – 5′6″ | 45–46 | S |
| 5′6″ – 5′10″ | 50–53 | M |
| 5′10″ – 6′3″ | 55–57 | L |
If you're between sizes, choose smaller for closer handlebars and larger for a bit more reach.
Fine-tune at pickup
We'll set saddle height and handlebar angle for you in minutes. Expect about 4 inches of seatpost range for multi-rider households.
Step-through vs. step-over
Step-through: easiest to get on and off. Step-over: slightly sportier feel.
Want absolute confidence? Test ride at Clever Cycles. We'll confirm size and make small adjustments on the spot.
Shipping Policy
Warranty
UPC / Part Numbers
| Option | SKU | UPC |
|---|---|---|
| 46 / Between Blue | BGA0037 | 8717231370896 |
| 46 / Light Olive | BGA0043 | 717231370926 |
| 53 / Between Blue | BGA0039 | 8717231370902 |
| 53 / Light Olive | BGA0045 | 8717231370933 |
| 57 / Between Blue | BGA0040 | 8717231370919 |
| 57 / Light Olive | BGA0046 | 8717231370940 |
