Description

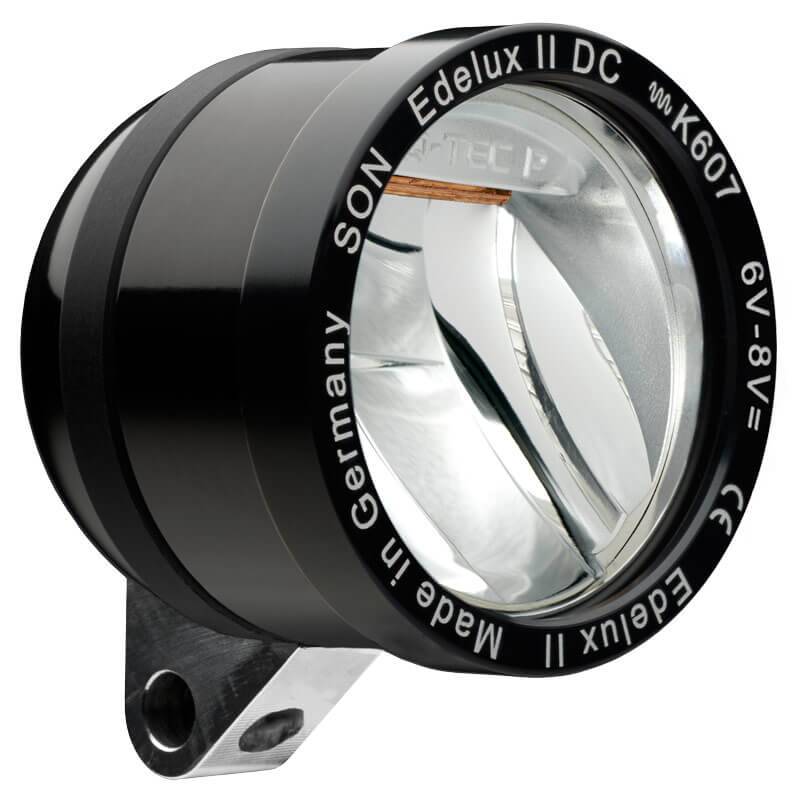

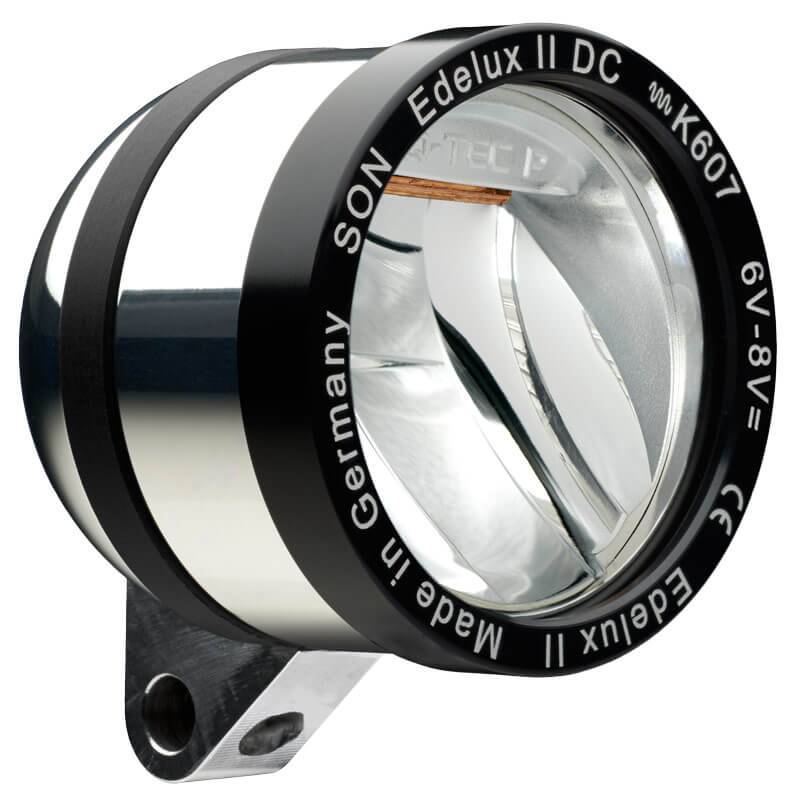

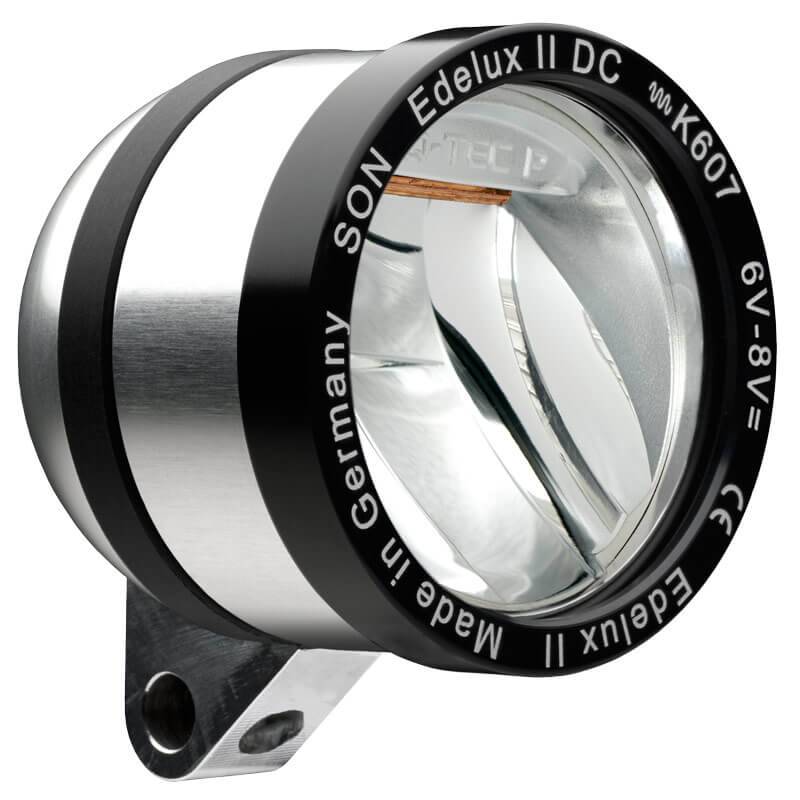

Premium E-Bike Headlight with German Engineering Excellence
The Schmidt Edelux II DC E-Bike Headlight delivers up to 90 lux of brilliant illumination powered directly by your e-bike's battery system. Designed specifically for pedelecs and electric bicycles with DC power systems ranging from 6 to 75 volts, this German-engineered headlight provides flicker-free, uniform lighting even at low speeds, with brightness increasing up to 90 lux at higher voltages. The wide beam pattern focuses exceptionally well at distance while distributing light evenly in front of your bike, making it ideal for dark roads, bike paths, and urban traffic alike.
Built in Tübingen, Germany by Wilfried Schmidt Maschinenbau (SON), the Edelux II DC features a robust aluminum housing with a scratch-proof anti-reflective glass lens that outperforms plastic alternatives and won't yellow or scratch over time. The high-power LED is soldered onto a copper heatsink that mounts directly to the aluminum body for optimal thermal management, ensuring consistent performance and longevity. With epoxy-potted electronics sealed against moisture and shock, a magnetic switch for easy operation even with gloves, and a built-in output for connecting dynamo-compatible rear lights, this headlight is perfect for Bosch systems and most common e-bike platforms. Schmidt backs their German craftsmanship with a 5-year guarantee.
Built to Last
- Direct current (DC) power supply from e-bike battery for 6 to 75 volt systems with switched output or 6 volt systems with low current limiting.
- Brightness: 60-70 lux at 5.8-6.4 volts (2-2.5 watts power consumption), increasing to 90 lux at 6.5-75 volts (approximately 3 watts).
- Wide beam pattern with excellent distance focus and even near-field distribution for safe visibility on dark roads and in traffic.
- Flicker-free, uniform illumination even at low speeds typical of e-bike use.
- 100% aluminum housing provides superior cooling, extreme durability, and weather resistance.
- Anti-reflective glass lens allows more light transmission than plastic alternatives and eliminates problems from aging or scratching.
- High-power LED soldered onto copper heatsink mounted directly to aluminum housing for optimum thermal conduction and extended LED life.
- Epoxy-potted electronics sealed watertight to protect against moisture, vibration, and shock.
- Magnetic switch operates internal reed contact for hermetically sealed housing while remaining easy to use even when wearing gloves.
- Built-in 6-volt rear light output connection allows you to power standard dynamo rear lights from your e-bike system.
- Includes 140cm SON coaxial cable for flexible installation and routing options.
- Special Neodrives variant available (black anodized only) without switch, featuring coaxial connection cable and potential-free 6-volt rear light output with twin cable.
- Perfect compatibility with Bosch e-bike systems and most common pedelec platforms up to 25 km/h.
- Lightweight at just 65 grams without cable for minimal impact on bike handling.
- Conforms to German StVZO legal regulations and ISO 6742 international standards.
- Made in Tübingen, Germany by Wilfried Schmidt Maschinenbau (SON) with legendary German precision engineering.
- 5-year manufacturer guarantee covers defects in materials and workmanship.
- Available in polished silver, silver anodized, or black anodized finishes to match your e-bike aesthetic.
- Must NOT be connected to alternating current (AC) hub dynamos—designed exclusively for DC e-bike battery power.
- Note: The Edelux DC 170 is available for higher power applications, but this Edelux II DC is ideal for most standard e-bike systems.
Details
- Product: Schmidt Edelux II DC E-Bike Headlight
- Manufacturer: Wilfried Schmidt Maschinenbau (SON), Tübingen, Germany
- Power Supply: Direct current (DC) only—NOT for use with AC hub dynamos
- Voltage Range: 6 to 75 volts DC (for systems with switched output or 6V systems with low current limiting)
- Power Consumption: 2-2.5 watts at 5.8-6.4 volts; approximately 3 watts at 6.5-75 volts
- Brightness: 60-70 lux at 5.8-6.4 volts; 90 lux at 6.5-75 volts
- LED Type: High-power LED
- Beam Pattern: Wide with excellent distance focus and even near-field distribution
- Housing: 100% aluminum with robust construction
- Lens: Anti-reflective glass (scratch-proof)
- Cooling: Copper heatsink directly mounted to aluminum housing for optimum thermal conduction
- Electronics: Epoxy-potted for moisture and shock protection
- Switch: Magnetic switch with internal reed contact (hermetically sealed)
- Cable: 140cm SON coaxial cable included (ready to install)
- Rear Light Output: 6-volt output for connecting standard dynamo rear lights
- Weight: 65 grams without cable
- Color Options: Polished silver, silver anodized, black anodized
- Part Numbers: 681403 (polished), 681493 (silver anodized), 681413 (black anodized)
- Neodrives Variant: Black anodized only, without switch, with 140cm coaxial connection cable and potential-free 6V rear light output with twin cable
- Standards Compliance: German StVZO legal regulations, ISO 6742
- Compatibility: Pedelecs up to 25 km/h, Bosch e-bike systems, most common e-bike drive systems with 6-75V DC supply
- Mounting: Requires separate bracket (check compatibility with your e-bike)
- Made In: Tübingen, Germany
- Warranty: 5-year manufacturer guarantee
- Important Note: This headlight is designed exclusively for DC-powered e-bikes and must NOT be connected to AC hub dynamos. Different voltages may require different headlight versions.
Premium E-Bike Headlight with German Engineering Excellence
The Schmidt Edelux II DC E-Bike Headlight delivers up to 90 lux of brilliant illumination powered directly by your e-bike's battery system. Designed specifically for pedelecs and electric bicycles with DC power systems ranging from 6 to 75 volts, this German-engineered headlight provides flicker-free, uniform lighting even at low speeds, with brightness increasing up to 90 lux at higher voltages. The wide beam pattern focuses exceptionally well at distance while distributing light evenly in front of your bike, making it ideal for dark roads, bike paths, and urban traffic alike.
Built in Tübingen, Germany by Wilfried Schmidt Maschinenbau (SON), the Edelux II DC features a robust aluminum housing with a scratch-proof anti-reflective glass lens that outperforms plastic alternatives and won't yellow or scratch over time. The high-power LED is soldered onto a copper heatsink that mounts directly to the aluminum body for optimal thermal management, ensuring consistent performance and longevity. With epoxy-potted electronics sealed against moisture and shock, a magnetic switch for easy operation even with gloves, and a built-in output for connecting dynamo-compatible rear lights, this headlight is perfect for Bosch systems and most common e-bike platforms. Schmidt backs their German craftsmanship with a 5-year guarantee.
Built to Last
- Direct current (DC) power supply from e-bike battery for 6 to 75 volt systems with switched output or 6 volt systems with low current limiting.
- Brightness: 60-70 lux at 5.8-6.4 volts (2-2.5 watts power consumption), increasing to 90 lux at 6.5-75 volts (approximately 3 watts).
- Wide beam pattern with excellent distance focus and even near-field distribution for safe visibility on dark roads and in traffic.
- Flicker-free, uniform illumination even at low speeds typical of e-bike use.
- 100% aluminum housing provides superior cooling, extreme durability, and weather resistance.
- Anti-reflective glass lens allows more light transmission than plastic alternatives and eliminates problems from aging or scratching.
- High-power LED soldered onto copper heatsink mounted directly to aluminum housing for optimum thermal conduction and extended LED life.
- Epoxy-potted electronics sealed watertight to protect against moisture, vibration, and shock.
- Magnetic switch operates internal reed contact for hermetically sealed housing while remaining easy to use even when wearing gloves.
- Built-in 6-volt rear light output connection allows you to power standard dynamo rear lights from your e-bike system.
- Includes 140cm SON coaxial cable for flexible installation and routing options.
- Special Neodrives variant available (black anodized only) without switch, featuring coaxial connection cable and potential-free 6-volt rear light output with twin cable.
- Perfect compatibility with Bosch e-bike systems and most common pedelec platforms up to 25 km/h.
- Lightweight at just 65 grams without cable for minimal impact on bike handling.
- Conforms to German StVZO legal regulations and ISO 6742 international standards.
- Made in Tübingen, Germany by Wilfried Schmidt Maschinenbau (SON) with legendary German precision engineering.
- 5-year manufacturer guarantee covers defects in materials and workmanship.
- Available in polished silver, silver anodized, or black anodized finishes to match your e-bike aesthetic.
- Must NOT be connected to alternating current (AC) hub dynamos—designed exclusively for DC e-bike battery power.
- Note: The Edelux DC 170 is available for higher power applications, but this Edelux II DC is ideal for most standard e-bike systems.
Details
UPC / Part Numbers
| Option | SKU | UPC |
|---|---|---|
| Silver Anodized / 6V DC | Schmidt Edelux II DC E-bike headlight-Silver Anodized-6V DC | 210000007595 |
| Black / 6V DC | Schmidt Edelux II DC E-bike headlight-Black-6V DC | 210000007594 |
| Silver Polished / 6V DC | Schmidt Edelux II DC E-bike headlight-Silver Polished-6V DC | 210000007596 |
