Tern Cargo, cleared for takeoff

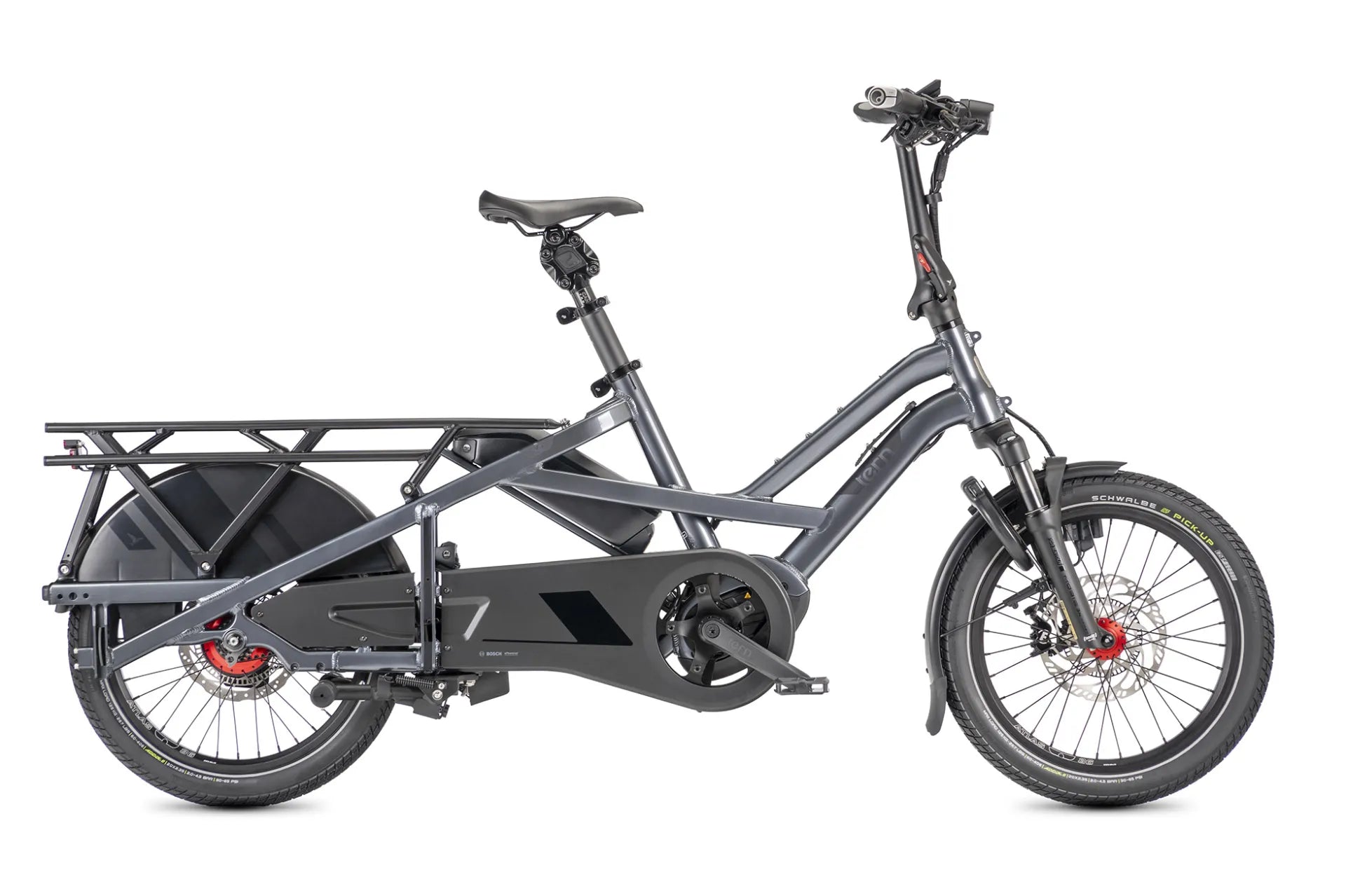

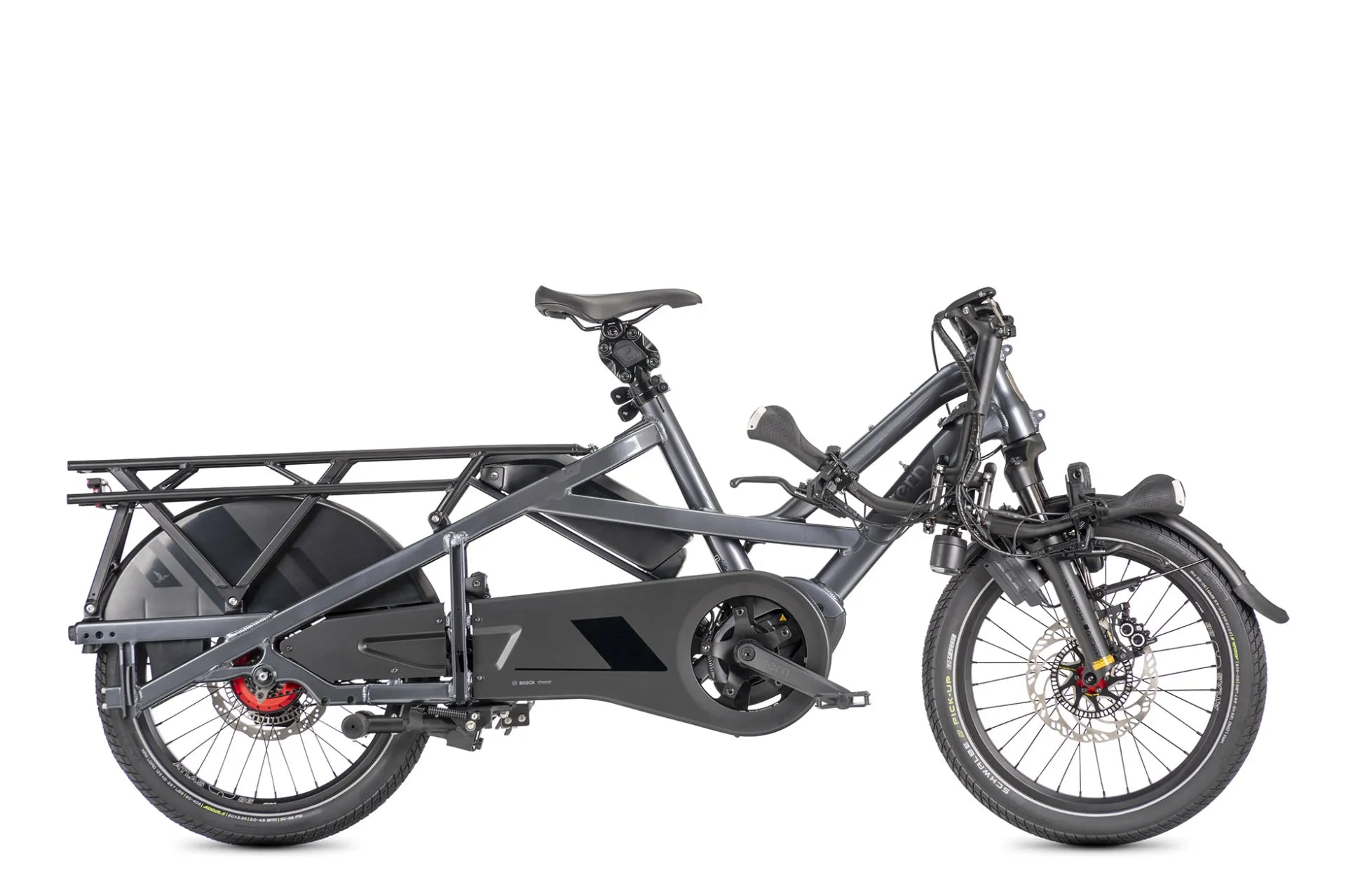

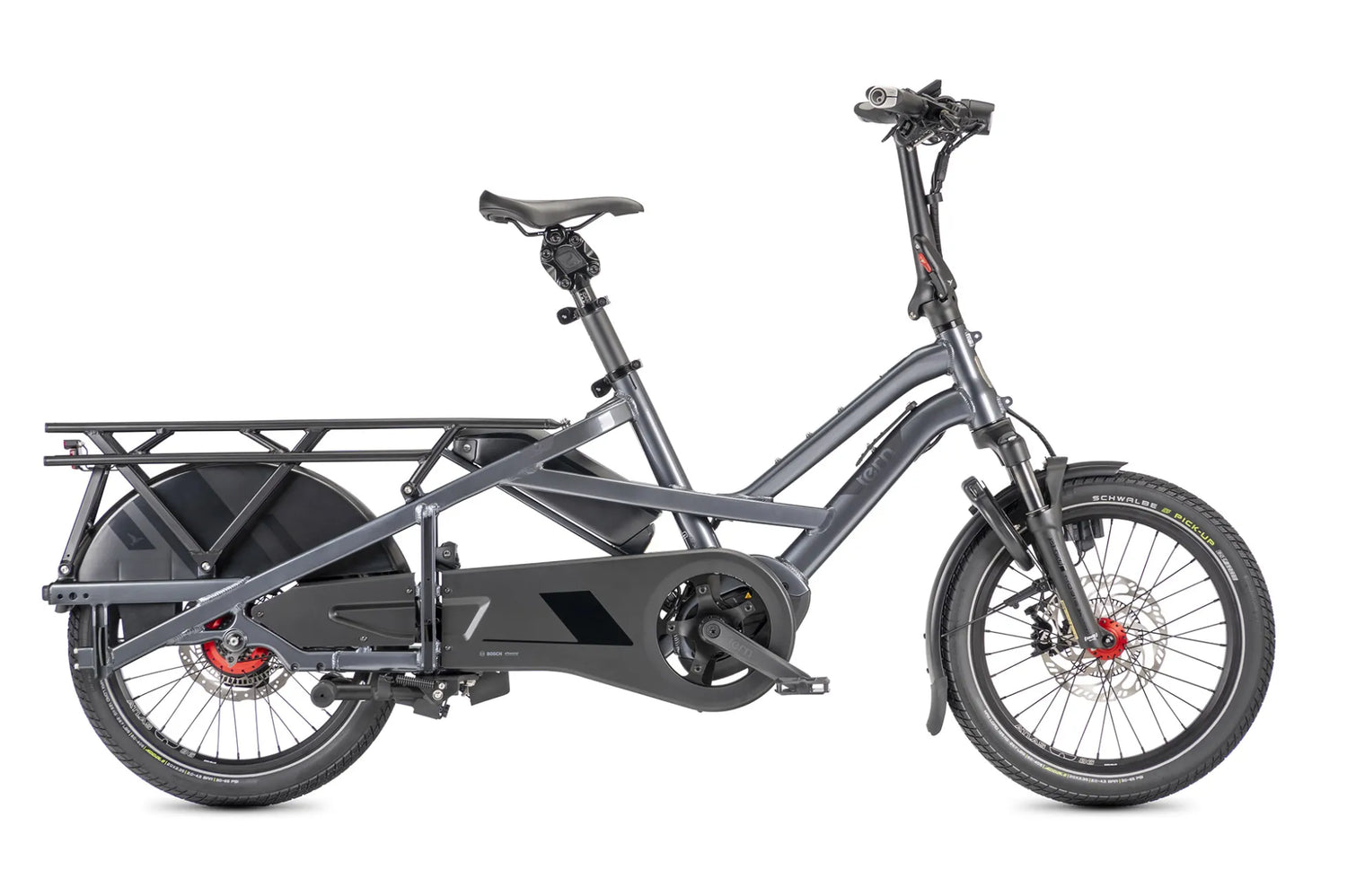

The Tern GSD R14 Gen 3 is the cargo bike that refuses to play small. With a rider height range from 4’11” to 6’7”, a 287 lb capacity, and modular cargo options, it’s engineered for families, businesses, and serious haulers alike. Flip a couple levers, adjust the cockpit, and it fits — no tools needed. It’s big in a small package. It’s strong. It’s built for work and life.
At a Glance

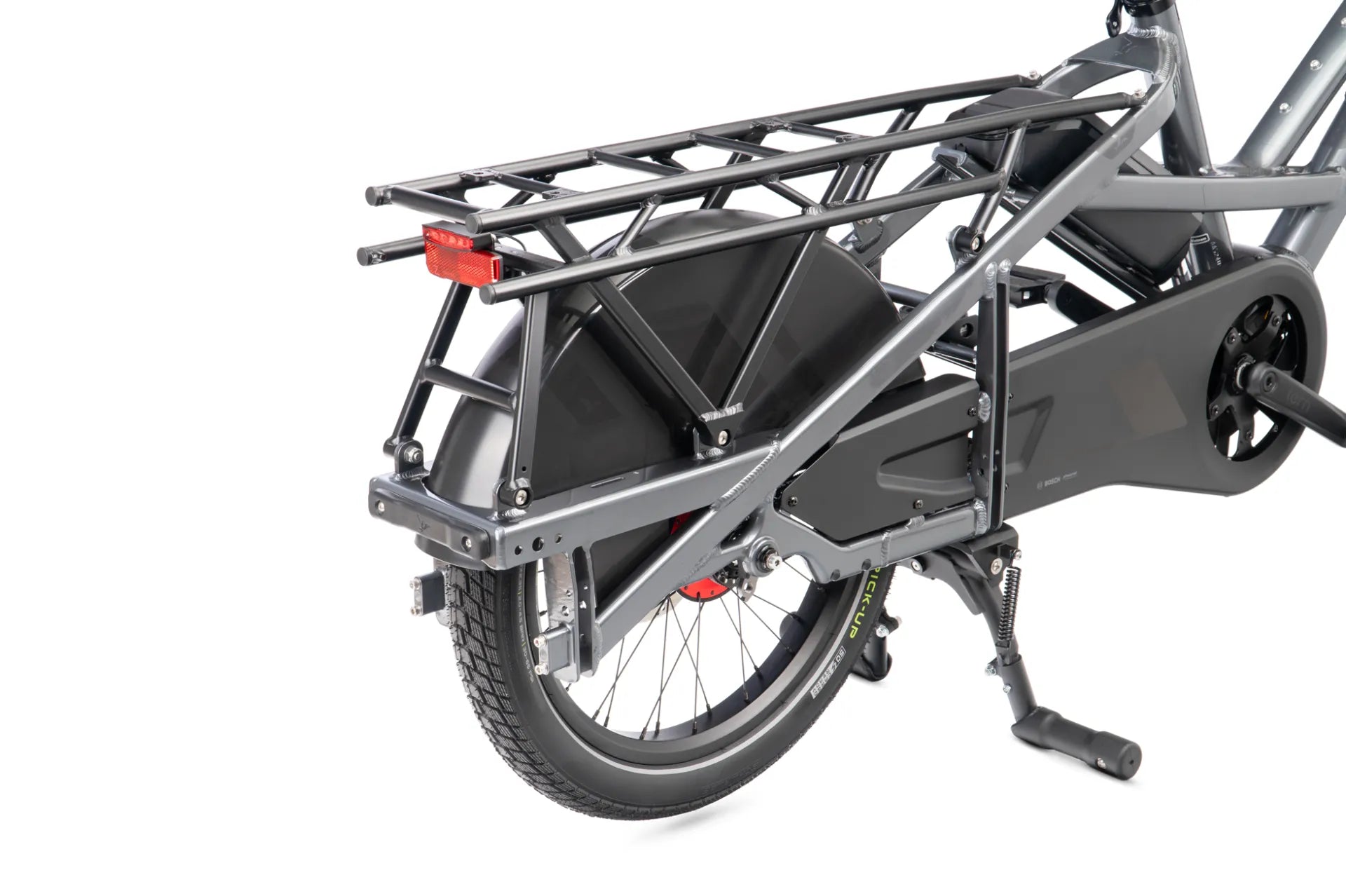

- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 463 lbs. with a rear rack load capacity of 220 lbs.

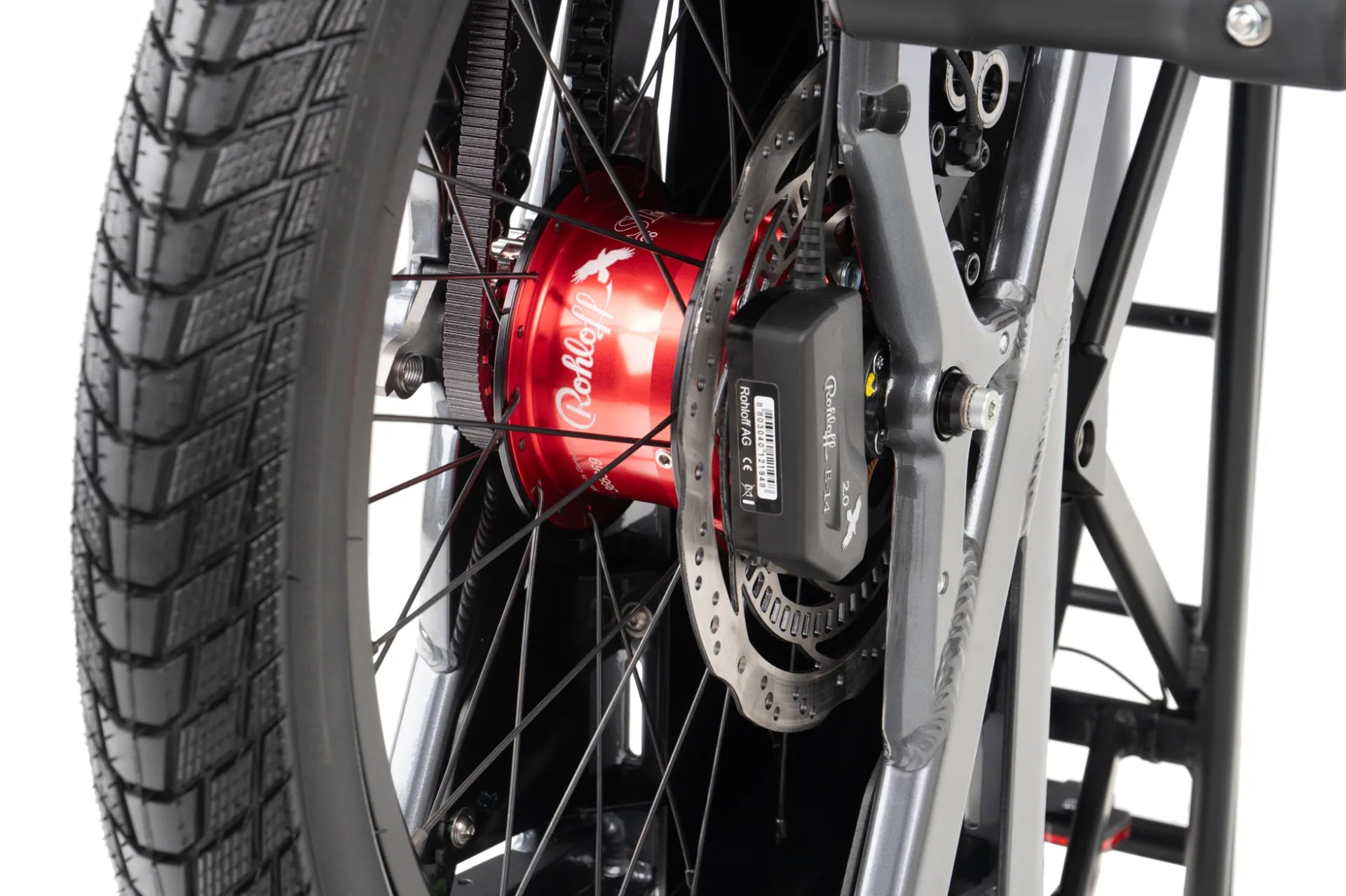

- 14-Speed auto-shifting Rohloff hub. There is nothing quite like it
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power with ABS

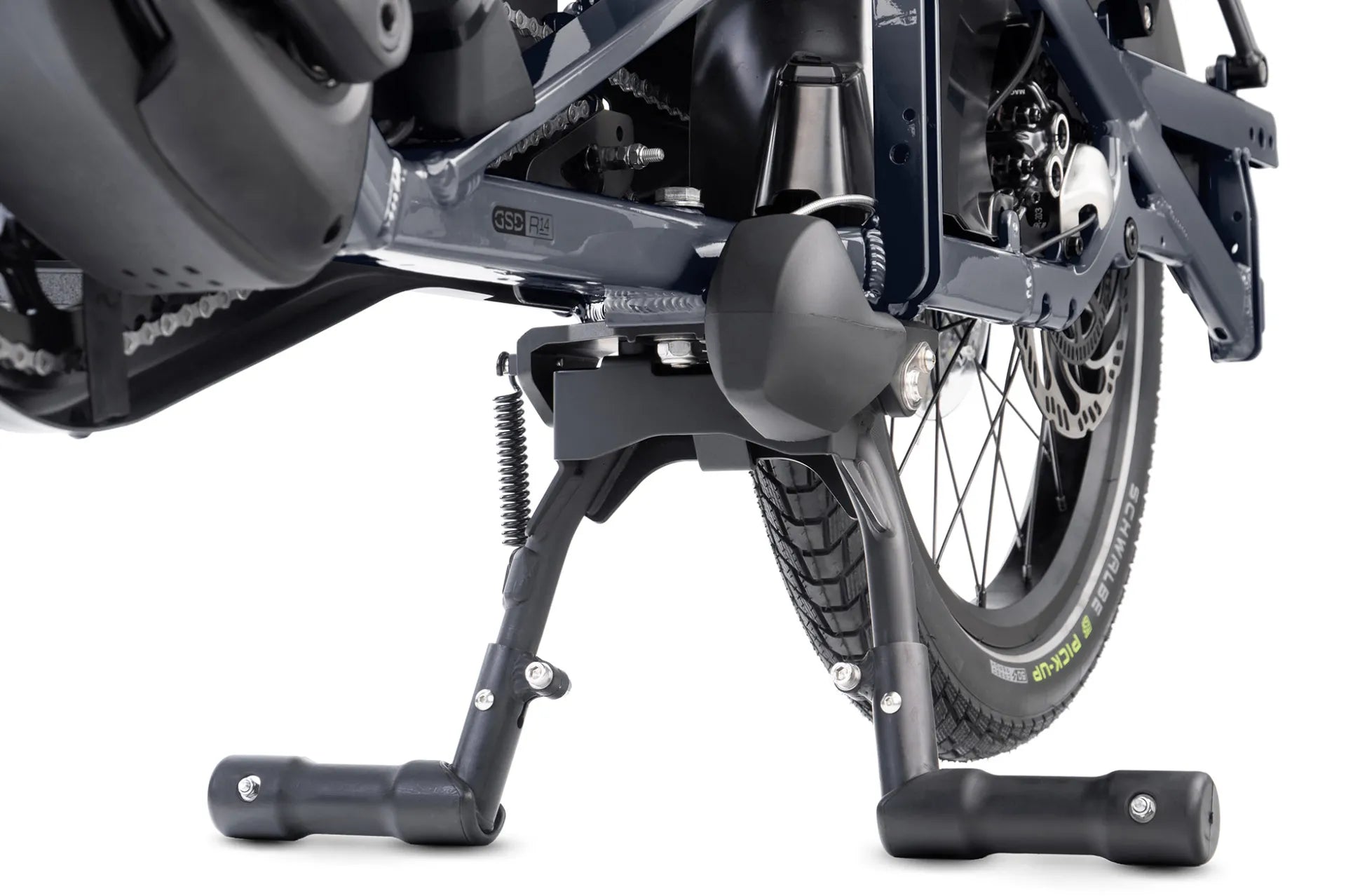

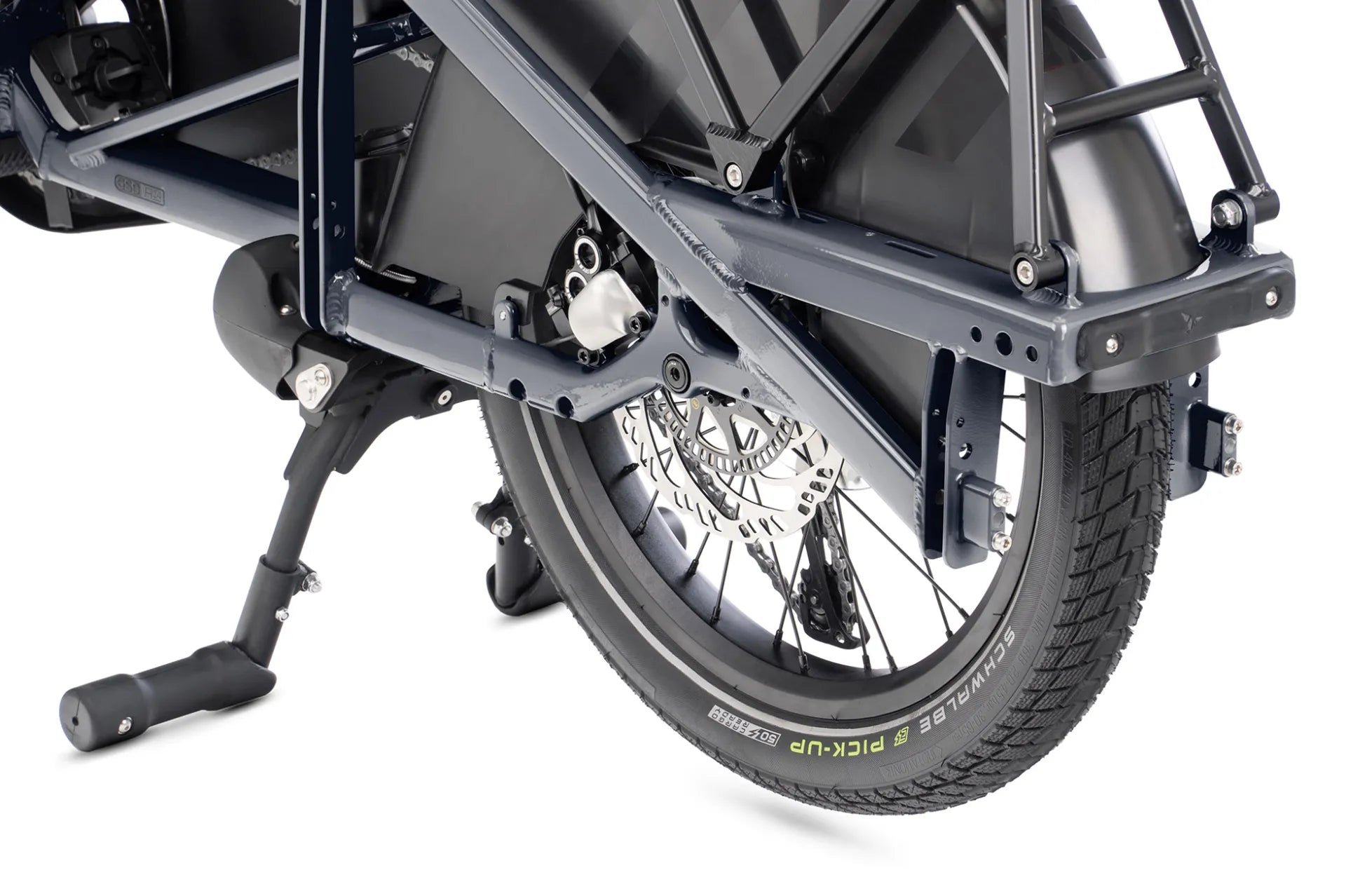

- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability

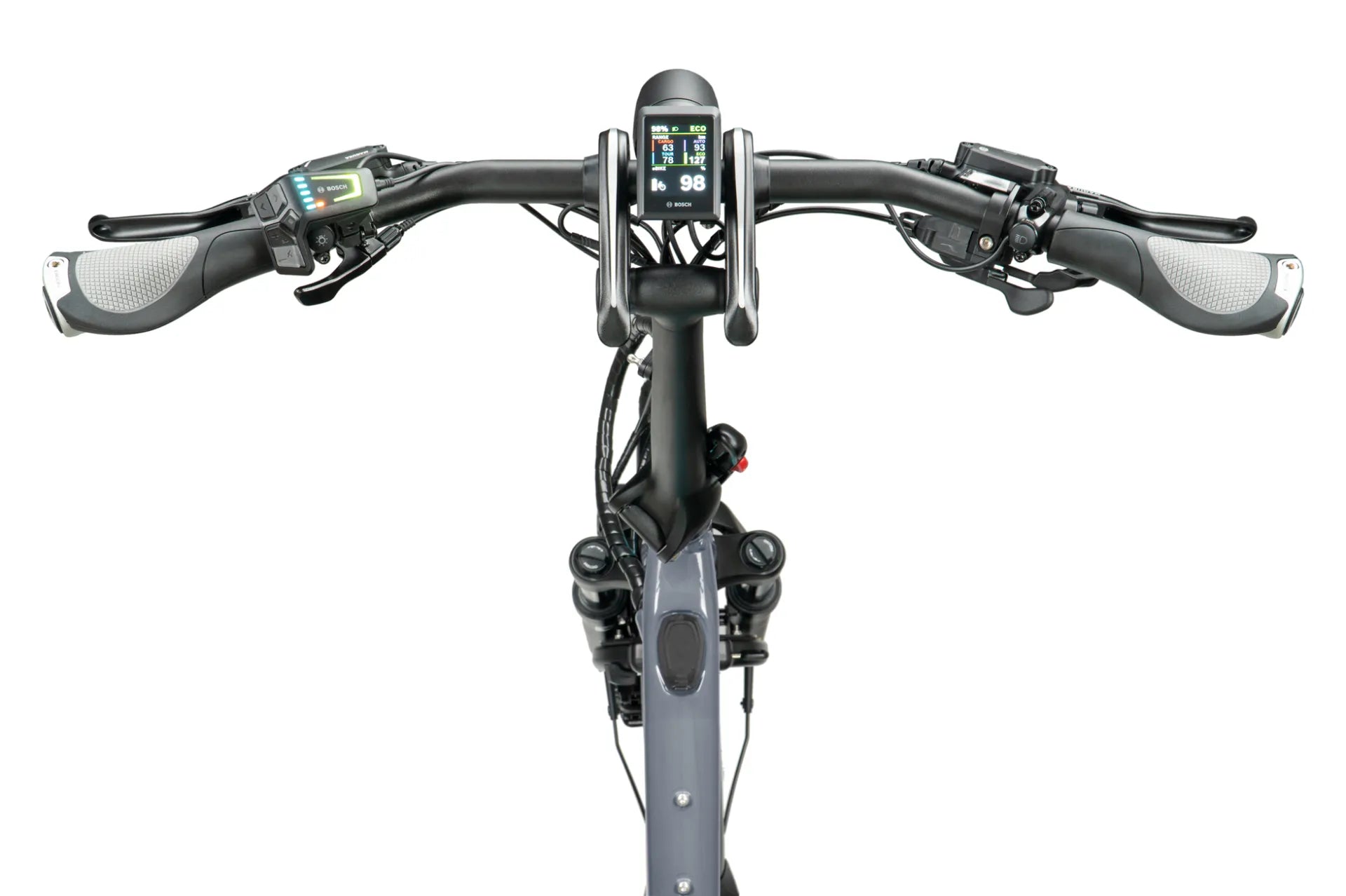

- Easy-sharing cockpit adjusts without tools to fit riders 4'11" - 6'7" tall and weighing up to 287 lbs.
- UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
Bike Facts
Serving size Carries up to 3 people
| Amount per ride | |
|---|---|
| Joy | 100% |
| Bike Details | |
| Frame Material | 6061 Aluminum |
| Brakes | Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor |
| Tires | Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex |
| Number of Gears | 14 |
| Rider Height | One Size: 4'11" - 6'7" |
| Weight | 85.5 Lbs. |
| Ebike Class | 1 |
| Motor Power | Bosch Cargo Line, 400% Assist, 85 Nm Torque |

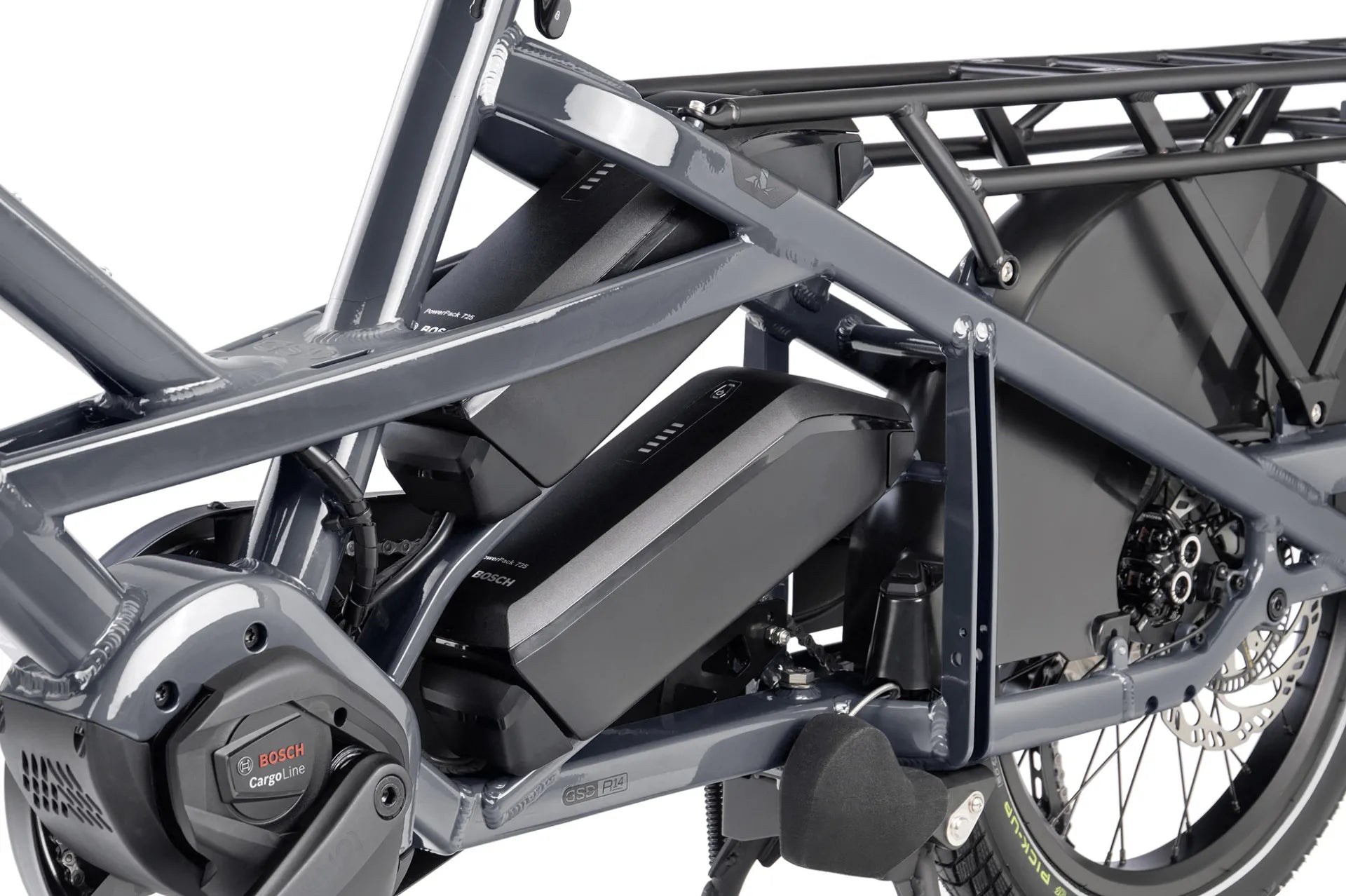

| Battery / Range | Bosch 800 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity |

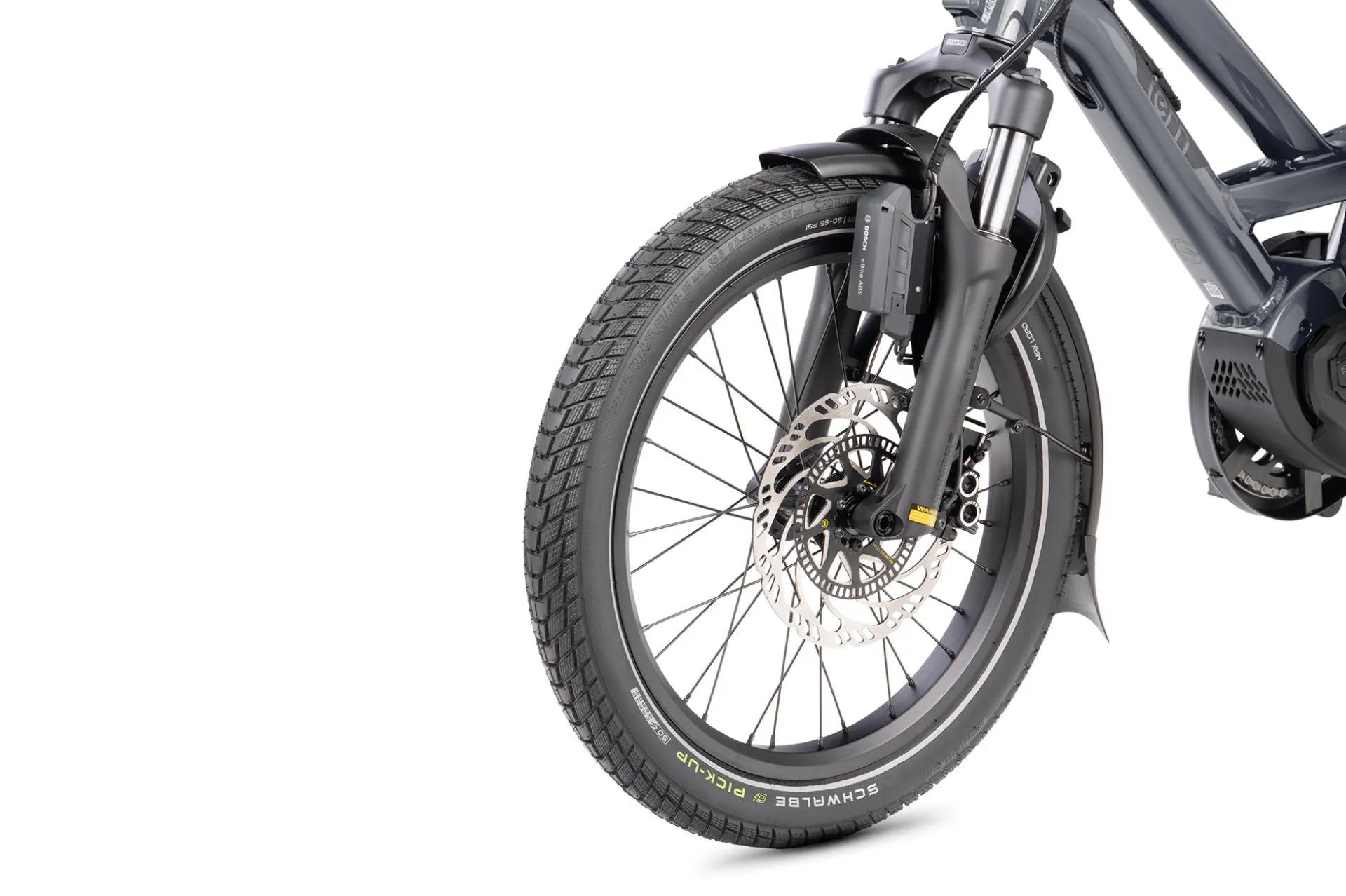

| Suspension | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg |
| Max Load (lbs) | 463 |

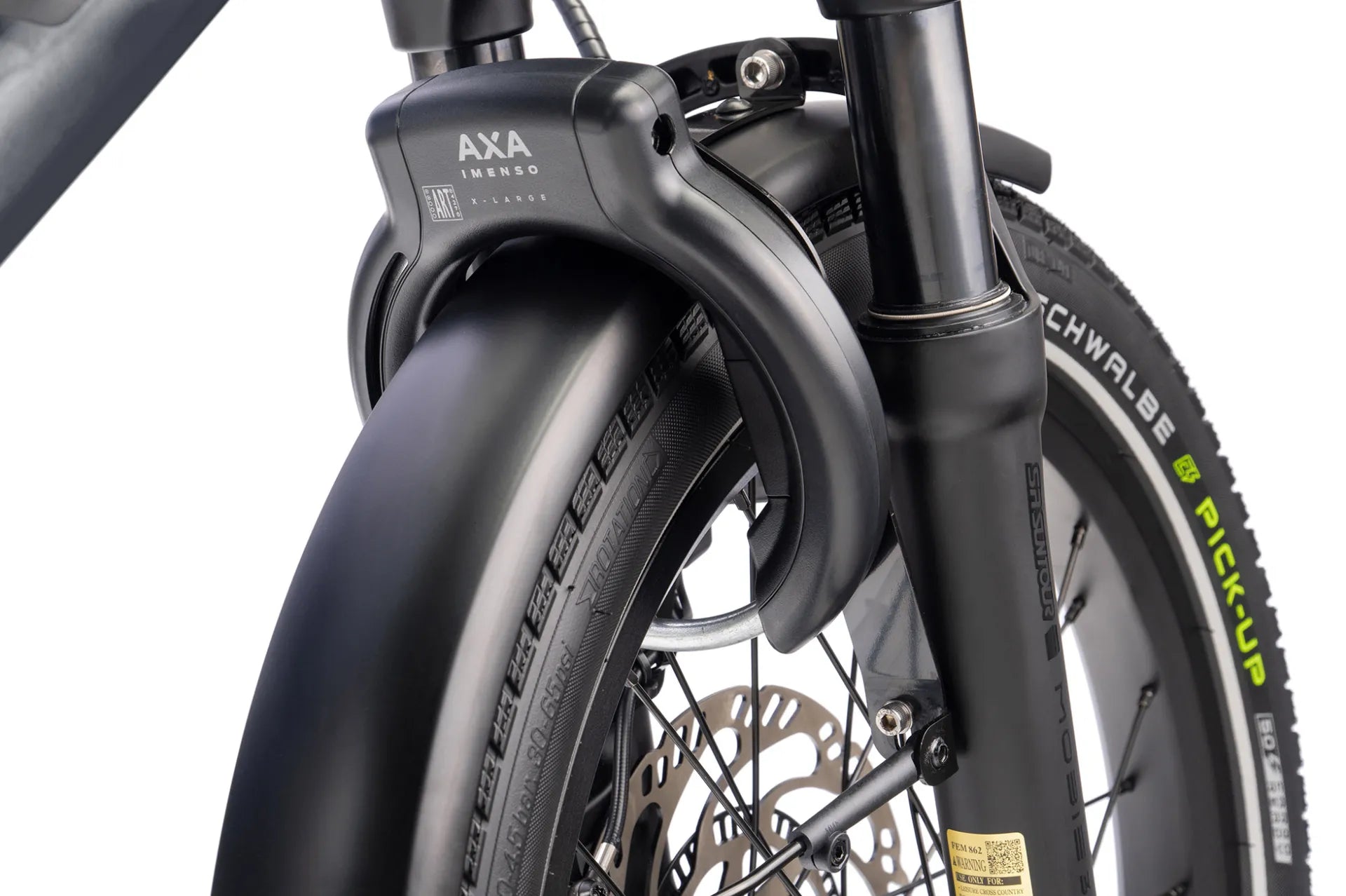

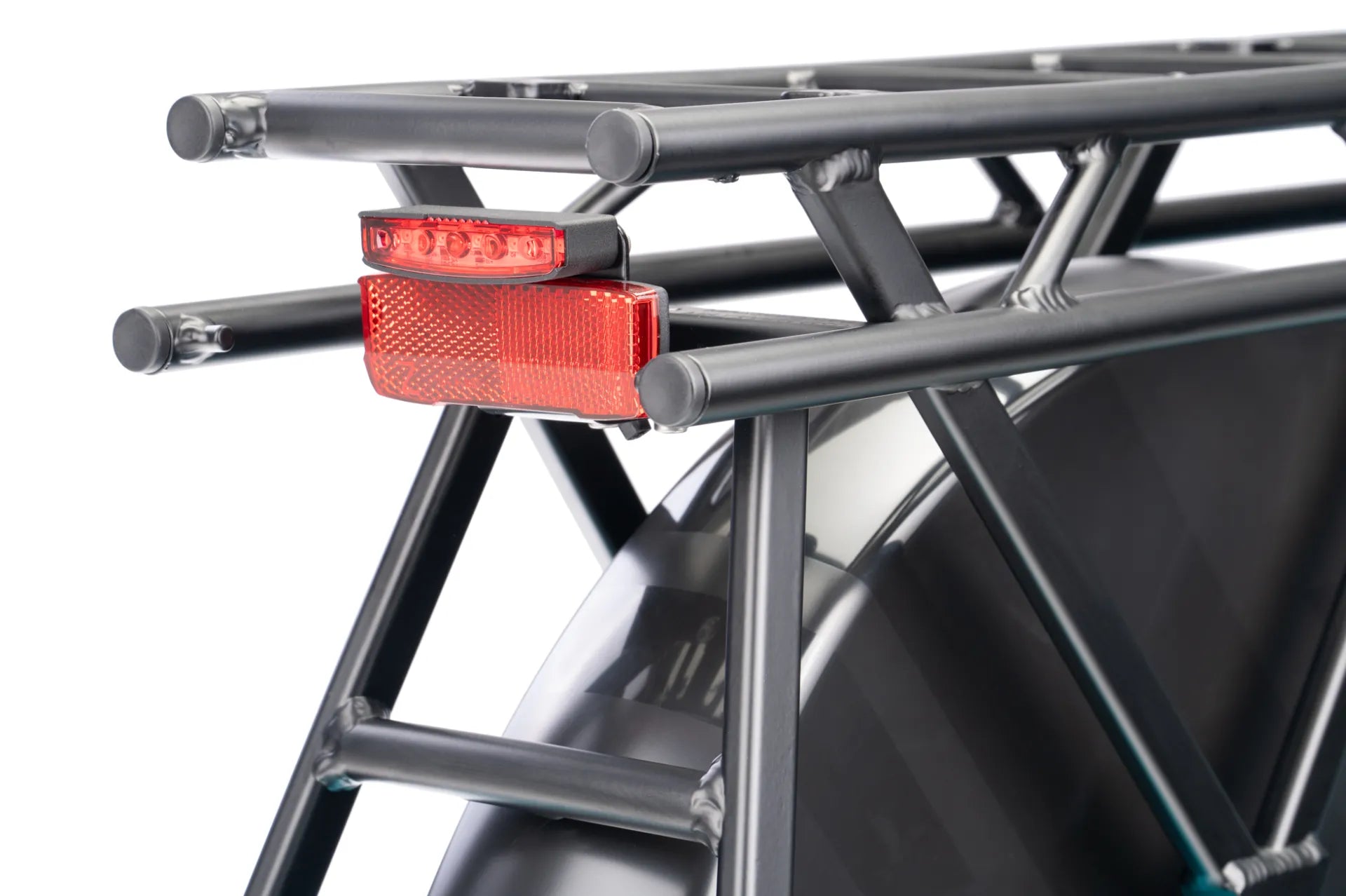

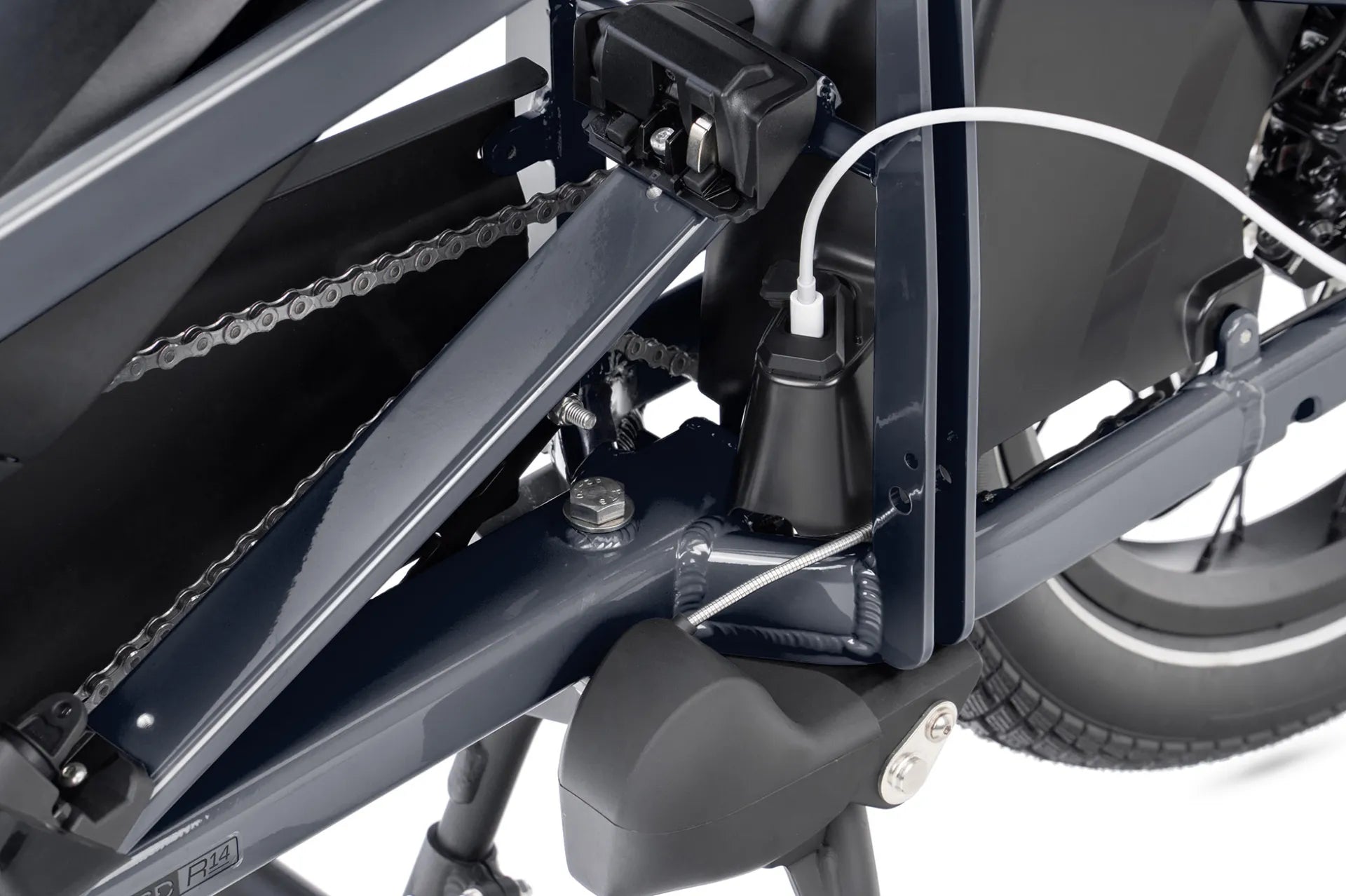

| Included Accessories | Bell, Chainguard, Atlas Lockstand Gen 2 Kickstand, Ignis Headlight (Hi/Lo beams, 700 lumens), Rear Light (with brake light), fenders, cafe lock (keyed alike), USB-C on-board charging port |
| Maintenance Requirements | Low |
* Built like a tank. Shifts like a watch. Costs like both.
One Size, Many Riders

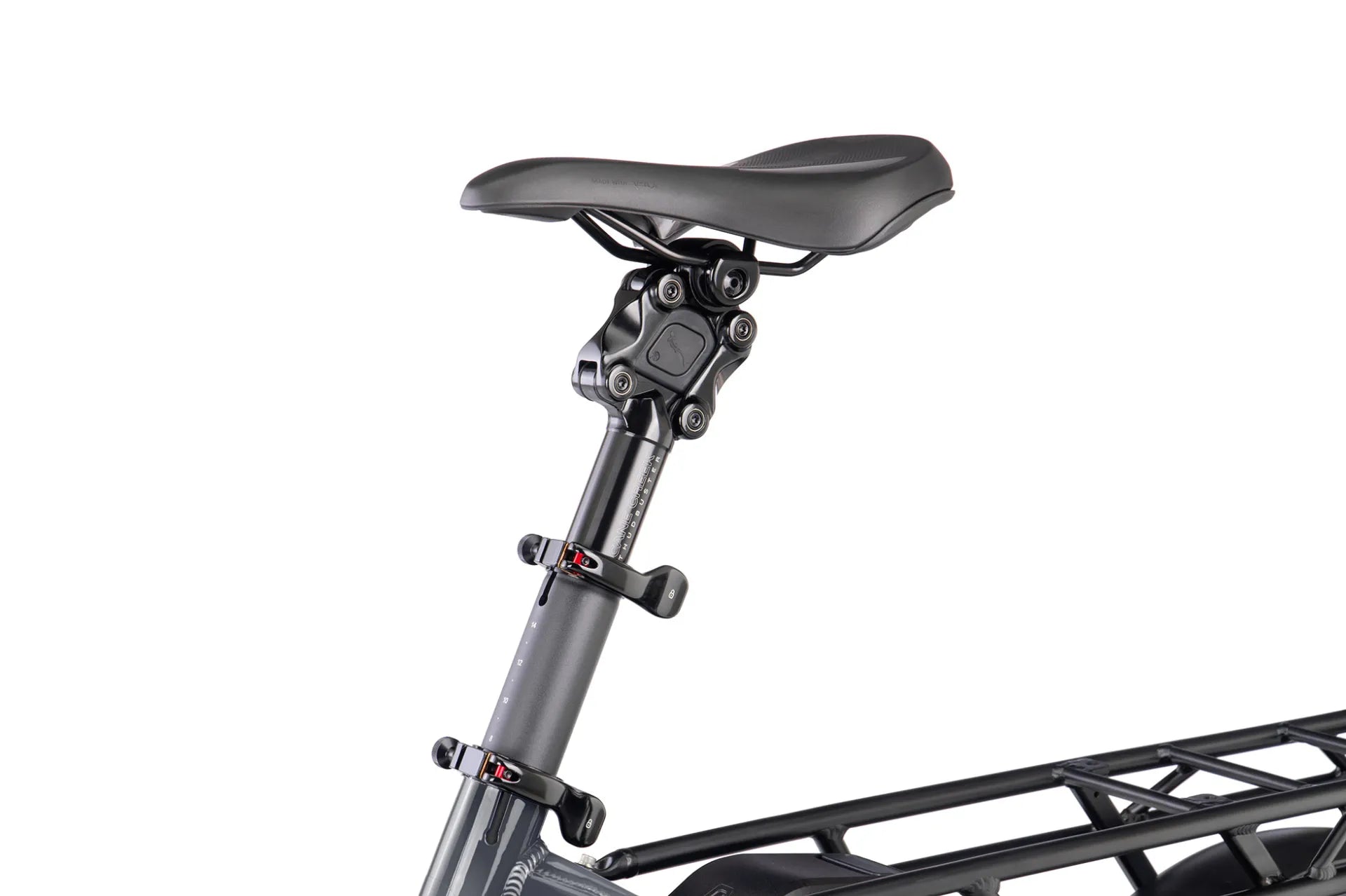

The GSD fits just about everyone. With its extra-long telescoping seatpost and adjustable handlebar stem, it easily adapts from 4’11” to 6’7” riders in seconds. No tools required.
Tern Cargo Bike Comparison Chart
| Feature | GSD Gen 3 | Quick Haul Long | HSD Gen 2 | Quick Haul | NBD |
|---|---|---|---|---|---|
| Ideal For | Full family cargo, 2 kids or adult | Affordable long-tail for 2 kids | Compact cargo for 1 passenger | Budget cargo for 1 kid or gear | Ultra-low step, easy everyday riding |
| Max Gross Weight | 210 kg (463 lb) | 190 kg (419 lb) | 180 kg (397 lb) | 150 kg (331 lb) | 140 kg (309 lb) |
| Rear Rack Max Load | 100 kg (220 lb) | 90 kg (198 lb) | 80 kg (176 lb) | 50 kg (110 lb) | 27 kg (60 lb) |
| Passenger Capacity | 2 kids or 1 adult | 2 kids or 1 adult | 1 kid or 1 adult | 1 kid or small adult | 1 young child in child seat |
| Bosch System | Smart System or System 2 | System 2 | Smart System | System 2 | System 2 |
| Motor | Cargo Line (85 Nm) | Cargo Line | Performance Line / Sport | Performance Line or Active Plus | Performance Line or Active Plus |
| Drive Type | Chain or belt (varies by trim) | Chain | Chain or belt (varies by trim) | Chain | Chain or belt (varies by trim) |
| Suspension | Fork + seatpost | Rigid | Fork | Rigid | Seatpost only |
| Rider Fit Range | 150–200 cm (4'11"–6'7") | 155–190 cm (5'1"–6'3") | 150–195 cm (4'11"–6'5") | 145–180 cm (4'9"–5'11") | 147–190 cm (4'10"–6'3") |
| Notes | Highest capacity, ABS & GPS-ready | Value cargo bike with 2-passenger rack | Balanced small cargo bike with Smart features | Entry cargo, compact and simple | Ultra-low step, very stable for all riders |
