Urban Arrow

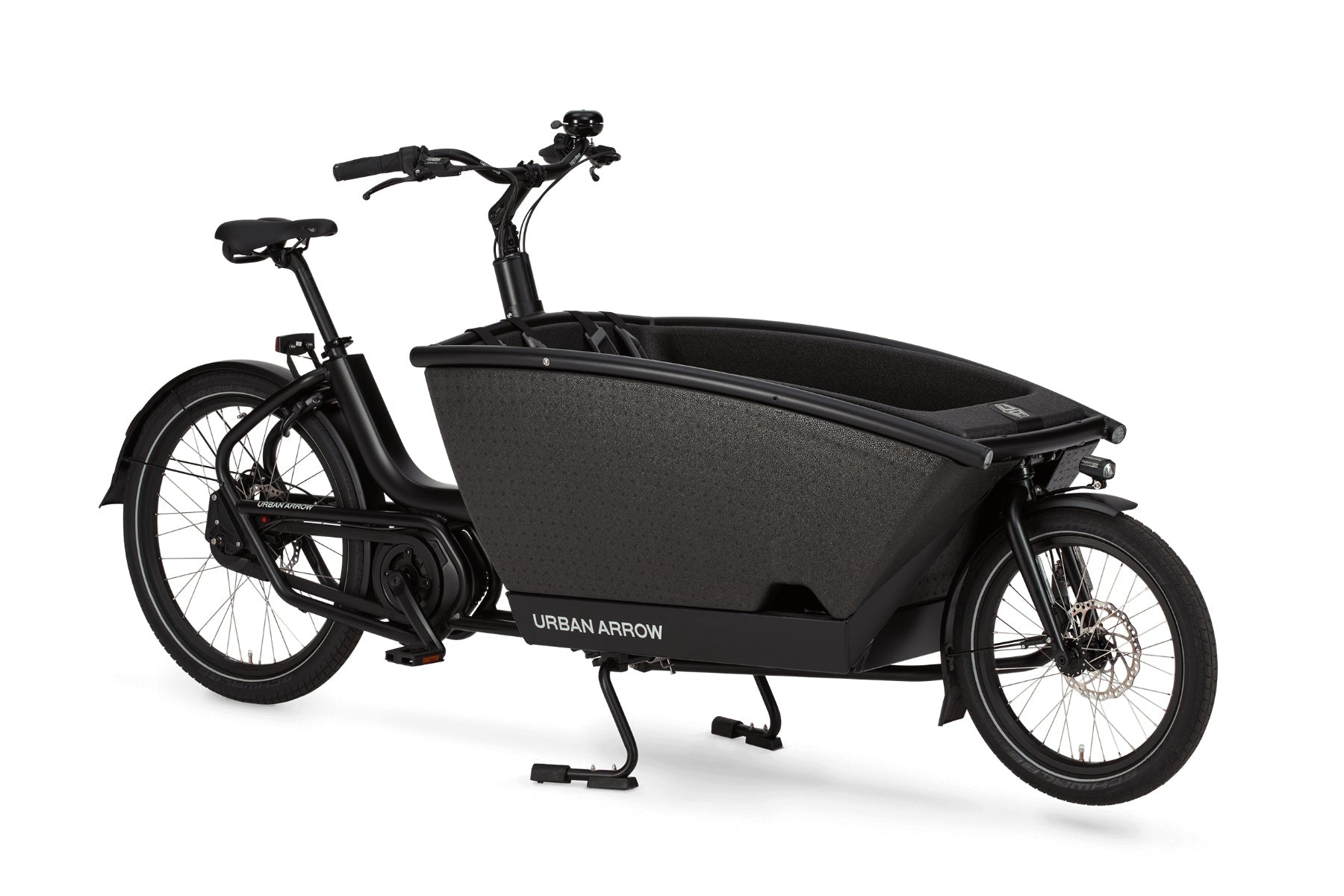

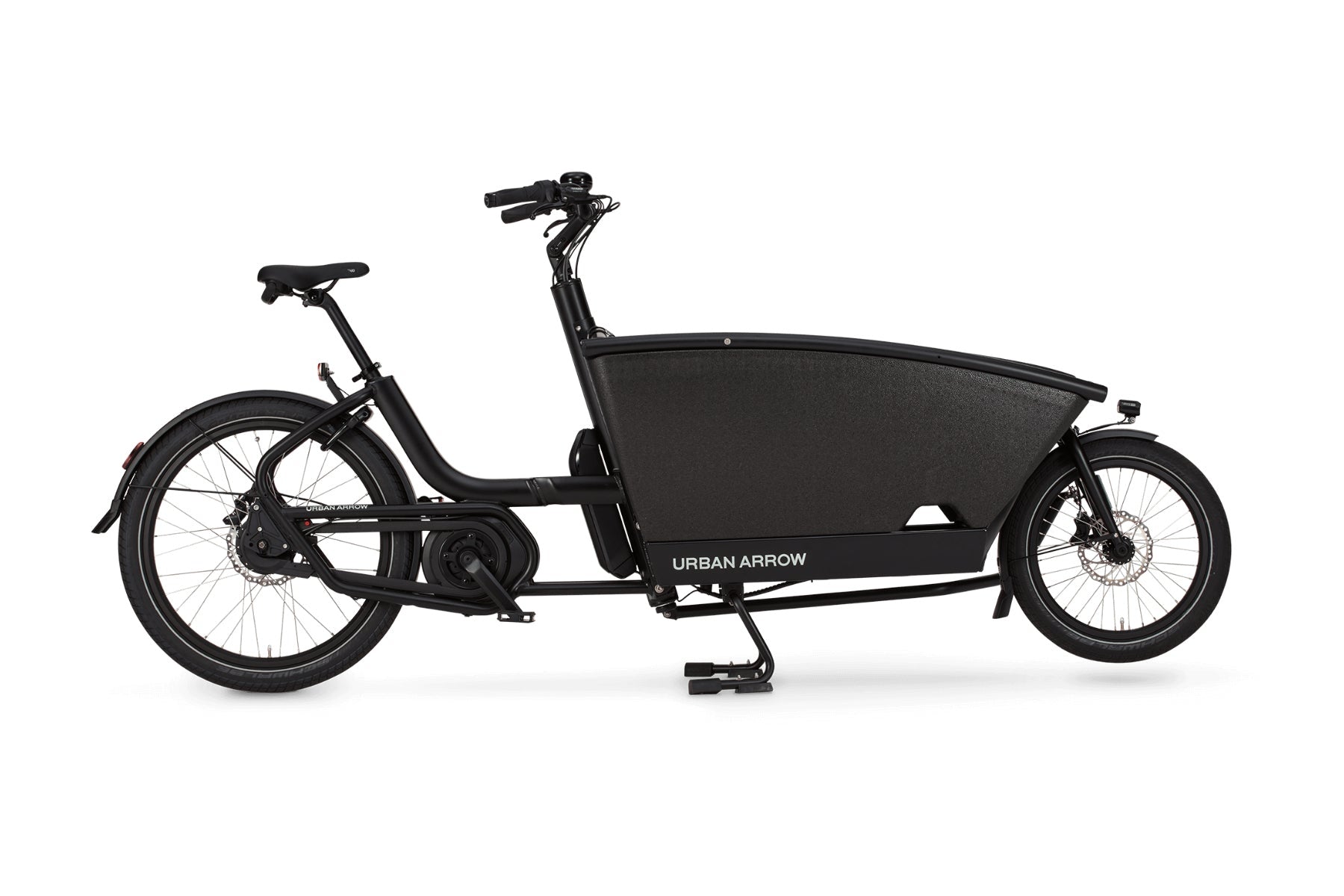

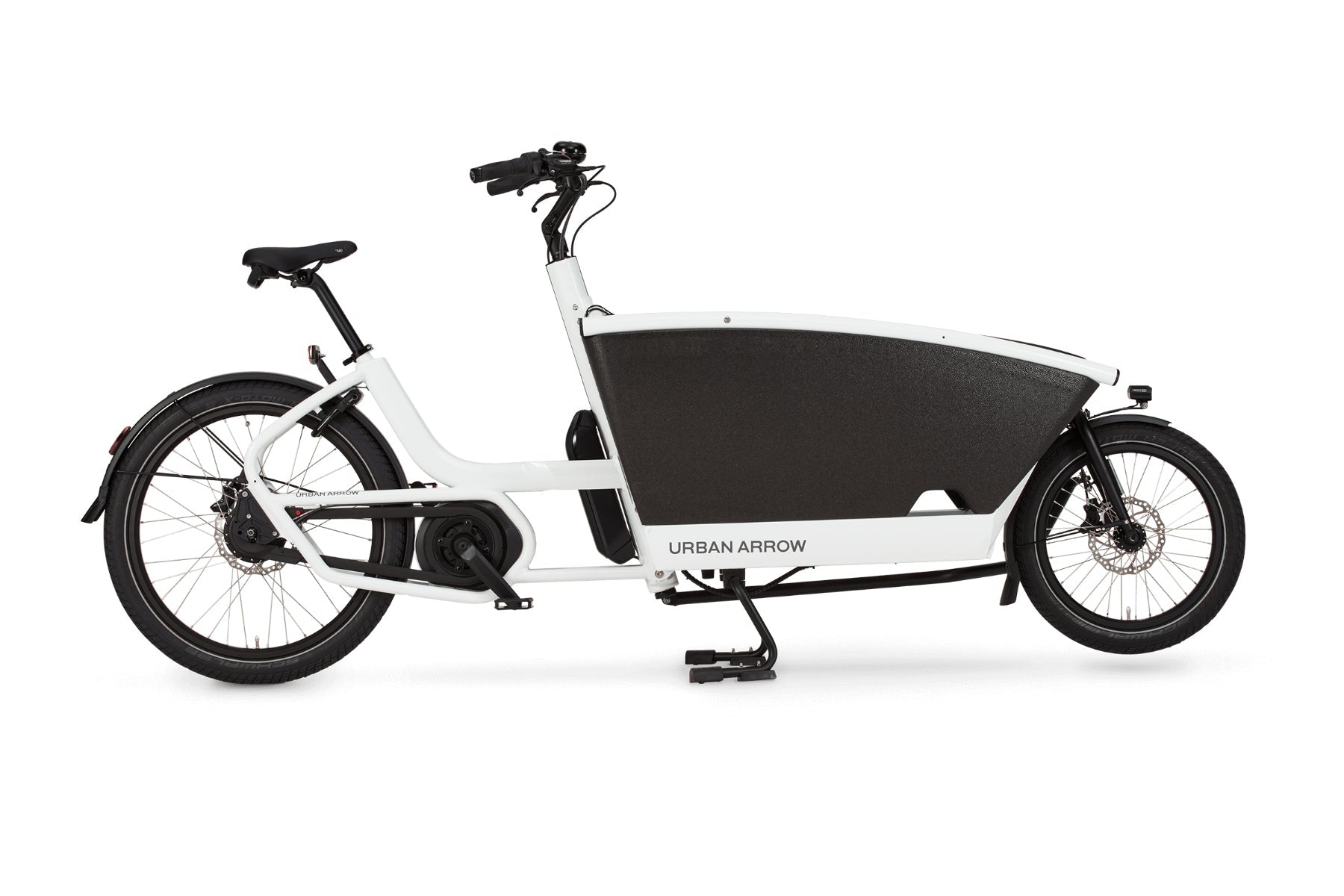

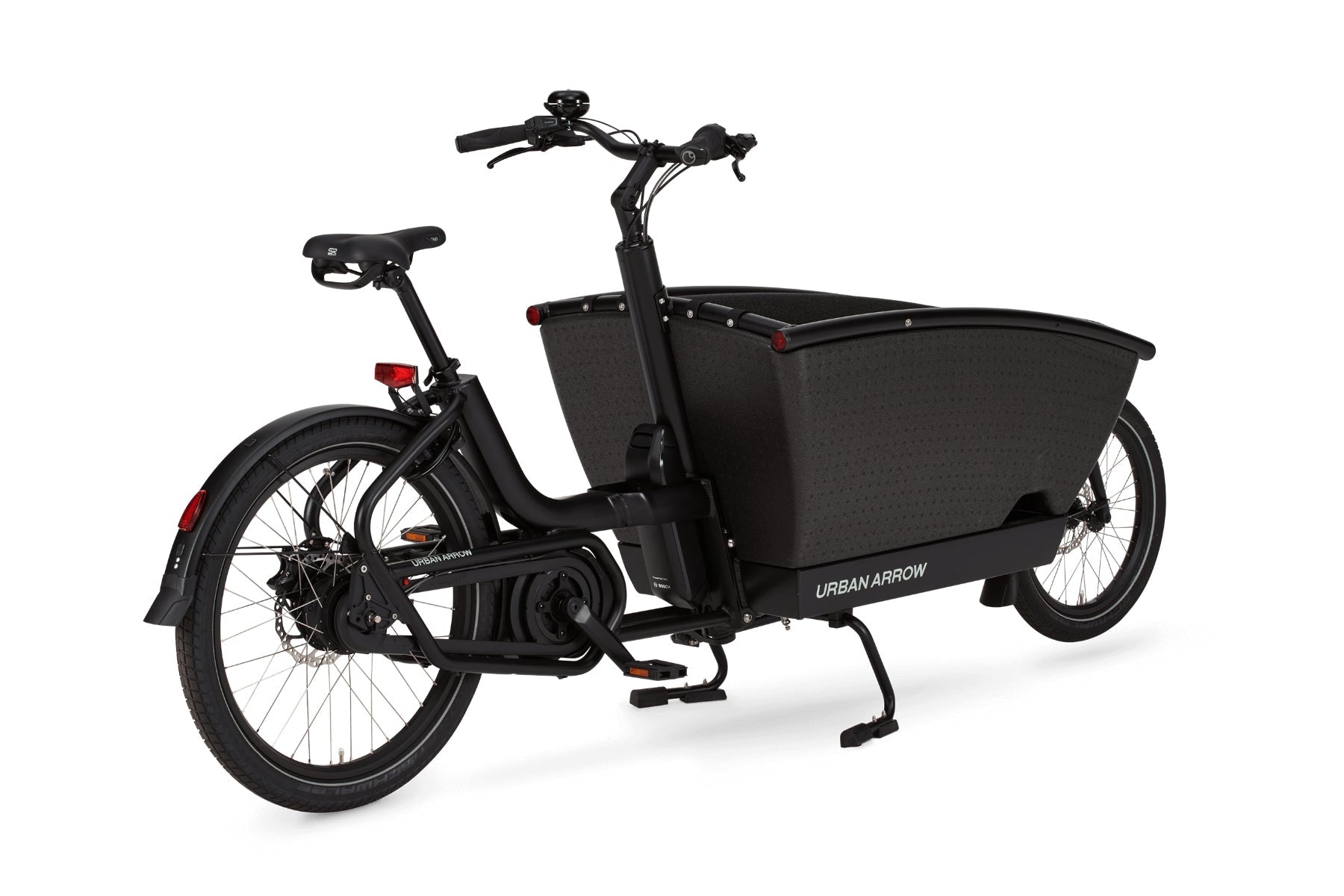

Urban Arrow Family Electric Cargo Bike Performance Motor Bosch SMART System

Urban Arrow Family Electric Cargo Bike Performance Motor Bosch SMART System

Regular price $6,999.00
Regular price Sale price $6,999.00
Sale Contact for ETA
Color
Quantity

Pickup only: Available for pickup at our Portland, Oregon store. Shipping is not available for this item.

Option SKU UPC
White BUA0433 8721052908008
Black BUA0200 8721052925104
View full details
  • Details That Matter

    The Urban Arrow Performance is built around a Bosch Performance motor that turns heavy loads and steep hills into something you hardly notice. Its long, low cargo box keeps the weight stable out front, so whether it’s two kids, groceries, or a week’s worth of gear, the bike still feels planted and predictable. Hydraulic disc brakes provide steady stopping power in rain or shine. The sturdy step-through frame makes it easy to hop on and off, even when the box is full. A continuously variable Enviolo hub smooths out shifting without fuss, so you can always find the right gear on the move.

  • Is This Your Bike? Read On.

    You want a true car-replacement, not just an errand runner. Daily school drop-offs, Costco hauls, weekend adventures — all without wrestling the family car keys. You need the stability of a long, low cargo box that handles naturally, even when it’s packed. Hills don’t scare you, but traffic and parking do, and you’d rather glide past the line of cars than sit in it. Comfort, safety, and proven reliability matter as much as load capacity. If you’re ready to make the bike your primary way of moving people and stuff, this is the one.

  • Pure Urban Arrow

    Urban Arrow has been building front-loading cargo bikes in Amsterdam since 2010, where bikes don’t just complement daily life — they are daily life. The Performance model is the evolution of that experience: a Bosch-powered workhorse tested on narrow streets, wet cobblestones, and heavy family loads. This isn’t a startup bike brand chasing a trend; Urban Arrow is one of the pioneers who helped set the standard for modern cargo cycling. With thousands on the road worldwide, they’ve proven that comfort, safety, and reliability aren’t negotiable — they’re baked into the design from the start.

Does the Urban Arrow Family Come in Different Sizes?

Nope—just one size, and it fits almost everyone. The Urban Arrow Family’s step-through frame and adjustable cockpit make dialing in your position quick and easy. As you raise the saddle, the distance to the handlebars opens up naturally, so it works just as well for tall riders as for not-so-tall ones. Because the pedals sit slightly forward of the saddle, you can put a foot flat on the ground while still getting full leg extension when you ride.

This “Flat Foot Technology” is what first put Electra on the map with their Townie model—and even earned them a patent. They later sued Trek for infringement, but Trek solved that the easy way: by buying Electra outright. Long story short, being able to put a foot flat on the ground at a stop—especially with a loaded cargo bike—is a very good thing. Standing up to pedal isn’t really an option with this geometry, but thanks to the Bosch motor, it’s not something you’ll ever need to do to get up a hill.

Test rides are the best way to know if a bike really works for you. We can talk about it all day, but five minutes riding the Urban Arrow will tell you everything you need to know.

Urban Arrow Comparison Chart

Service center

Feature Performance Line Cargo Line Next Pro
Motor & Torque Bosch Performance Line — ~75 Nm Bosch Cargo Line Gen 4 (Smart System) — 85 Nm Bosch Cargo Line Gen 4 (Smart System) — 85 Nm
Battery & Range 545 Wh PowerPack 545 Wh PowerPack (dual-battery optional) 545 Wh PowerPack (dual-battery optional)
Display & Connectivity Intuvia / LED Remote (by model) Kiox 300 + LED Remote; Smart System; optional GPS/tracking Kiox 300 + LED Remote; Smart System; optional GPS/tracking
Drivetrain Chain drive + Enviolo CVT Gates Carbon Belt + Enviolo Heavy-Duty CVT Gates Carbon Belt + Enviolo Heavy-Duty CVT
Brakes Hydraulic disc Hydraulic disc Magura CMe hydraulic disc
Suspension / Comfort Rigid fork (no suspension) Rigid fork (no suspension) Suntour Mobie34 CGO Boost
Load & Weight Limits Bike + cargo up to 550 lb total; 275 lb front box Bike + cargo up to 550 lb total; 275 lb front box Bike + cargo up to 550 lb total; 275 lb front box
Lighting / Visibility Front & rear lights powered by battery Stronger front & rear lights + accent LEDs Box-integrated LED lighting; Lezyne Power E115 headlight
Colors White / Black White / Black Green / Black
Use-Case Focus Smaller cargo & family duty; lighter loads Max cargo; heavy family use; steep terrain Blends performance + cargo; daily hauls with added comfort
