Urban Arrow Family — The Car Replacement That Actually Replaces the Car
The Urban Arrow Family Cargo Line Smart System – the powerhouse of family e-cargo bikes. This model takes all the family-friendly design of the Urban Arrow Family Performance version and pairs it with Bosch’s Cargo Line motor and a Gates Belt Drive, delivering exceptional torque and strength for the heaviest loads and steepest city streets. The Cargo Line edition is built for those who demand a bit more oomph: whether you have growing kids, live in a very hilly area, or just want the extra performance headroom, this bike has you covered. Like its Performance Line sibling, the Cargo Line model is an ideal car replacement for urban families, but it packs an extra punch when it comes to carrying capacity and acceleration.
Detailed Specifications
- Motor & Power: Bosch Cargo Line (Smart System) mid-drive motor, 250W nominal power, with 85 Nm of torque. Purpose-built for cargo e-bikes to move heavy loads from a standstill and up sharp inclines. Assistance limited to 25 km/h (20 mph in the US).
- Battery & Range: 545 Wh Bosch PowerPack (Smart System). Typical single-battery range ~50 km (30 miles) under mixed conditions; dual-battery compatible for up to 100 km (60+ miles). Charge time about 4–6 hours with the standard charger; removable for indoor charging.
- Cargo Capacity: Designed for heavy loads. Front box supports substantial passenger and cargo use. Total system capacity depends on regional spec; bench with three-point belts and EPP foam box for impact protection.
- Drivetrain & Gearing: Enviolo Heavy Duty stepless CVT hub with Gates Carbon Belt Drive. Low maintenance, clean, quiet, and durable; allows easy shifting even when stopped under load.
- Brakes & Stability: Hydraulic disc brakes front and rear (cargo-rated systems). Long wheelbase and low, centered mass deliver stable handling when fully loaded.

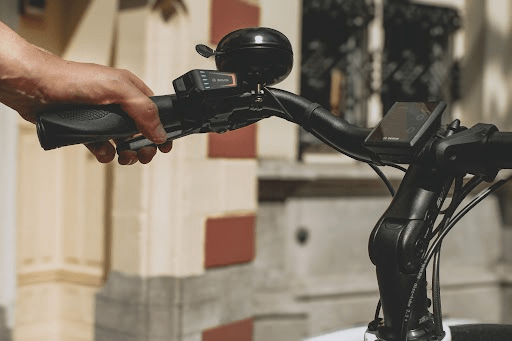

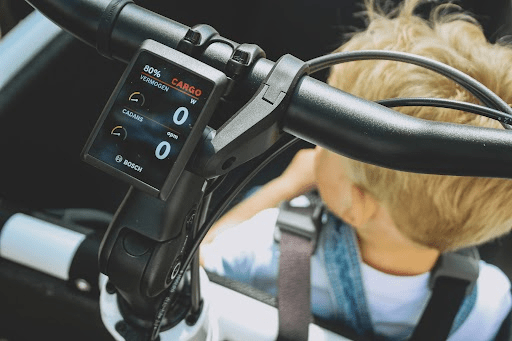

- Display & Tech: Bosch LED Remote + Kiox 300 display (Smart System): ride metrics, mode control, walk assist, OTA updates via eBike Flow app.
- Connectivity: Compatible with the optional Bosch ConnectModule for GPS tracking, theft alerts, and motor immobilization via the eBike Flow app.
*Includes a complimentary one-year premium eBike Flow App subscription; renewal fees may apply thereafter.
Additional Features: Padded bench with footrests, heavy-duty dual kickstand for loading, integrated LED lighting powered by the main battery, puncture-resistant tires, low step-through frame, and a wide range of accessories (rain covers, infant adapters, box covers, second bench).
Family Lifestyle & Urban Commuting Benefits
Owning the Urban Arrow Family Cargo Line is like having a compact family car on two wheels. For school runs and daycare drop-offs, kids sit up front so you can interact as you ride. Seatbelts and the protective cargo box add peace of mind. The Cargo Line motor’s extra torque makes hilly routes and heavy loads far easier, expanding what’s practical by bike.
Commuting by e-cargo bike also means fewer parking hassles and less time in traffic. Park close to your destination, lock up, and go. With Smart System features and optional tracking, you get added security in city environments.
Daily use is where this bike shines: rain covers for winter, sun protection for summer, and assist that keeps you moving without arriving sweaty. It’s a realistic car-trip replacement for many families.
Performance Line vs. Cargo Line: Model Comparison
The choice between Performance Line and Cargo Line comes down to terrain, loads, and budget. Both share the same safety-first, family-ready platform. If you expect bigger hills or heavier cargo most days, the Cargo Line’s extra torque and belt drive are worth it. If your routes are moderate, the Performance Line covers daily family use at a friendlier price.
Bike Facts
Serving size Carries up to 4 people
| Amount per ride | |
|---|---|
| Joy | 100% |
| Bike Details | |
| Frame Material | Aluminum |
| Brakes | Hydraulic disc |
| Tires | Schwalbe Super Moto X |
| Number of Gears | CVT ∞ |
| Rider Height | One size: 5'1" – 6'7" |
| Weight | Approx. 112 Lbs. |
| Ebike Class | 1 |
| Motor Power | Bosch Cargo Line 85 Nm torque |
| Battery / Range | 545 Wh Bosch PowerPack (Smart System) |
| Max Load (lbs) | 550 |
| Included Accessories | Bell, fenders, front & rear lights, fenders, cafe lock |
| Maintenance Requirements | Low |
Does the Urban Arrow Family Come in Different Sizes?
Test rides are the best way to know if a bike really works for you. We can talk about it all day, but five minutes riding the Urban Arrow will tell you everything you need to know.
Urban Arrow Comparison Chart
| Feature | Performance Line | Cargo Line | Next Pro |
|---|---|---|---|
| Motor & Torque | Bosch Performance Line — ~75 Nm | Bosch Cargo Line Gen 4 (Smart System) — 85 Nm | Bosch Cargo Line Gen 4 (Smart System) — 85 Nm |
| Battery & Range | 545 Wh PowerPack | 545 Wh PowerPack (dual-battery optional) | 545 Wh PowerPack (dual-battery optional) |
| Display & Connectivity | Intuvia / LED Remote (by model) | Kiox 300 + LED Remote; Smart System; optional GPS/tracking | Kiox 300 + LED Remote; Smart System; optional GPS/tracking |
| Drivetrain | Chain drive + Enviolo CVT | Gates Carbon Belt + Enviolo Heavy-Duty CVT | Gates Carbon Belt + Enviolo Heavy-Duty CVT |
| Brakes | Hydraulic disc | Hydraulic disc | Magura CMe hydraulic disc |
| Suspension / Comfort | Rigid fork (no suspension) | Rigid fork (no suspension) | Suntour Mobie34 CGO Boost |
| Load & Weight Limits | Bike + cargo up to 550 lb total; 275 lb front box | Bike + cargo up to 550 lb total; 275 lb front box | Bike + cargo up to 550 lb total; 275 lb front box |
| Lighting / Visibility | Front & rear lights powered by battery | Stronger front & rear lights + accent LEDs | Box-integrated LED lighting; Lezyne Power E115 headlight |
| Colors | White / Black | White / Black | Green / Black |
| Use-Case Focus | Smaller cargo & family duty; lighter loads | Max cargo; heavy family use; steep terrain | Blends performance + cargo; daily hauls with added comfort |
